Please send RFQ , we will respond immediately.

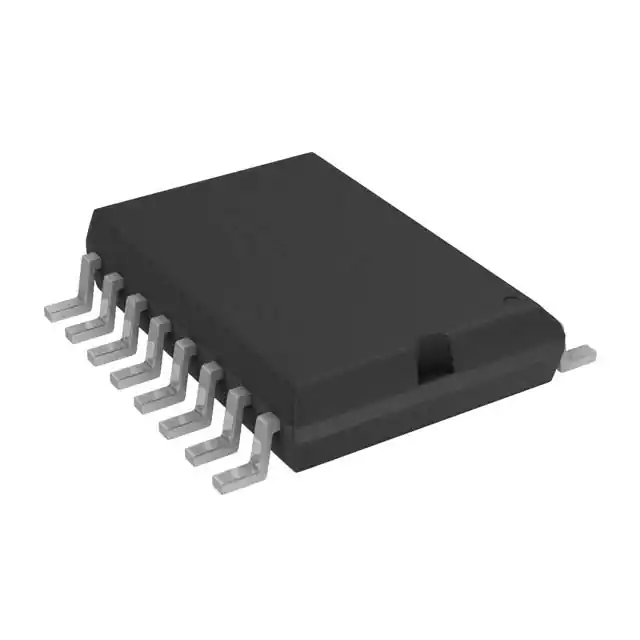

| Part Number | TC4627COE | TC4627EOE | TC4626COE |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| Driven Configuration | High-Side or Low-Side | High-Side or Low-Side | High-Side or Low-Side |
| Channel Type | Single | Single | Single |
| Number of Drivers | 1 | 1 | 1 |
| Gate Type | N-Channel, P-Channel MOSFET | N-Channel, P-Channel MOSFET | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4V ~ 6V | 4V ~ 6V | 4V ~ 6V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V | 0.8V, 2.4V | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 1.5A, 1.5A | 1.5A, 1.5A | 1.5A, 1.5A |
| Input Type | Non-Inverting | Non-Inverting | Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - |
| Rise / Fall Time (Typ) | 33ns, 27ns | 33ns, 27ns | 33ns, 27ns |
| Operating Temperature | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) | 16-SOIC (0.295", 7.50mm Width) | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC | 16-SOIC | 16-SOIC |
