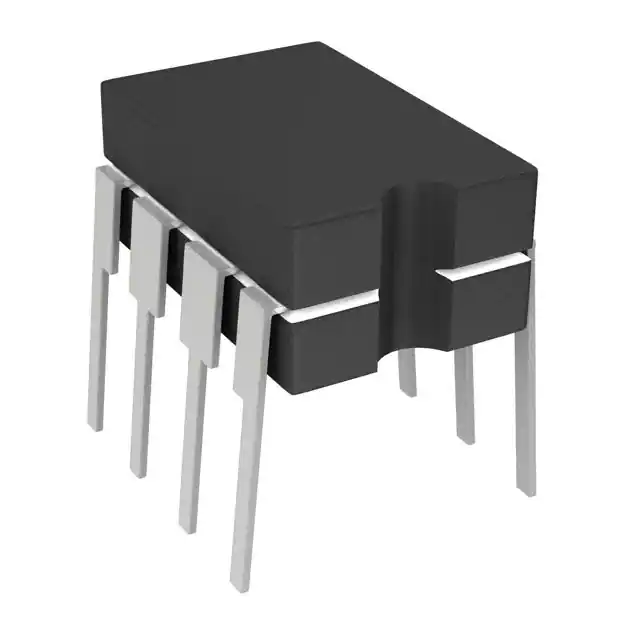

| Part Number | TC4626MJA | TC4627MJA |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Active |
| Driven Configuration | High-Side or Low-Side | High-Side or Low-Side |
| Channel Type | Single | Single |
| Number of Drivers | 1 | 1 |
| Gate Type | N-Channel, P-Channel MOSFET | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4V ~ 6V | 4V ~ 6V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 1.5A, 1.5A | 1.5A, 1.5A |
| Input Type | Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | - |
| Rise / Fall Time (Typ) | 33ns, 27ns | 33ns, 27ns |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | 8-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 8-CERDIP | 8-CERDIP |
