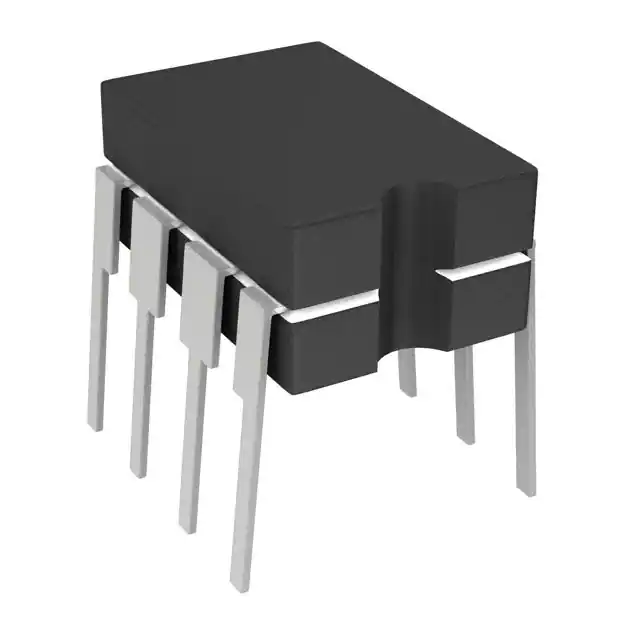

| Part Number | TC4432EJA | TC4432EOA | TC4432EPA | TC4431EJA |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Active | Active | Obsolete |
| Driven Configuration | High-Side or Low-Side | High-Side or Low-Side | High-Side or Low-Side | High-Side or Low-Side |
| Channel Type | Single | Single | Single | Single |
| Number of Drivers | 1 | 1 | 1 | 1 |
| Gate Type | N-Channel, P-Channel MOSFET | N-Channel, P-Channel MOSFET | N-Channel, P-Channel MOSFET | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 30V | 4.5V ~ 30V | 4.5V ~ 30V | 4.5V ~ 30V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V | 0.8V, 2.4V | 0.8V, 2.4V | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 1.5A, 1.5A | 1.5A, 1.5A | 1.5A, 1.5A | 1.5A, 1.5A |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - | - |
| Rise / Fall Time (Typ) | 25ns, 33ns | 25ns, 33ns | 25ns, 33ns | 25ns, 33ns |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole |
| Package / Case | 8-CDIP (0.300", 7.62mm) | 8-SOIC (0.154", 3.90mm Width) | 8-DIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 8-CERDIP | 8-SOIC | 8-PDIP | 8-CERDIP |
