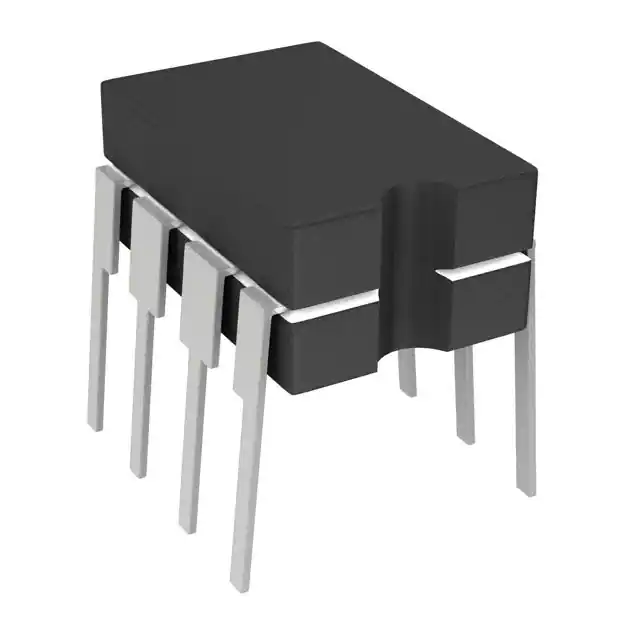

| Part Number | TC4421MJA | TC4424MJA | TC4422MJA | TC4423MJA | TC4425MJA | TC4420MJA |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Obsolete | Active |
| Driven Configuration | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side |
| Channel Type | Single | Independent | Single | Independent | Independent | Single |
| Number of Drivers | 1 | 2 | 1 | 2 | 2 | 1 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET | N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | N-Channel, P-Channel MOSFET | N-Channel, P-Channel MOSFET | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V | 0.8V, 2.4V | 0.8V, 2.4V | 0.8V, 2.4V | 0.8V, 2.4V | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 9A, 9A | 3A, 3A | 9A, 9A | 3A, 3A | 3A, 3A | 6A, 6A |
| Input Type | Inverting | Non-Inverting | Non-Inverting | Inverting | Inverting, Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - | - | - | - |
| Rise / Fall Time (Typ) | 60ns, 60ns | 23ns, 25ns | 60ns, 60ns | 23ns, 25ns | 23ns, 25ns | 25ns, 25ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 8-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 8-CERDIP | 8-CERDIP | 8-CERDIP | 8-CERDIP | 8-CERDIP | 8-CERDIP |
