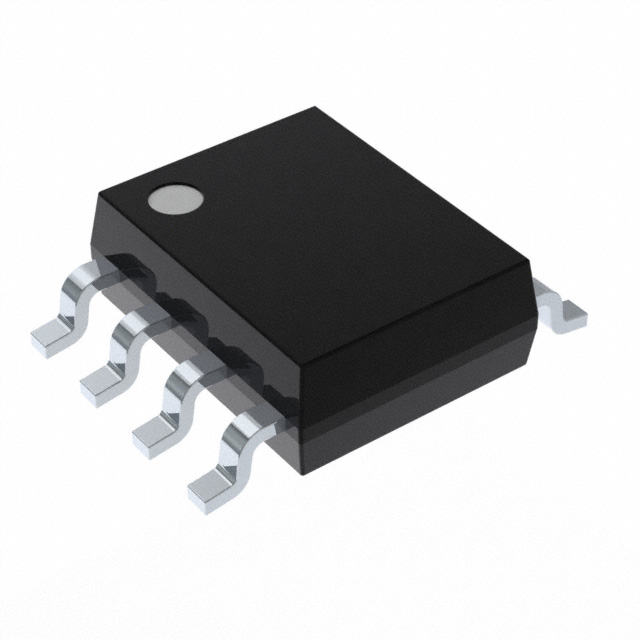

| Part Number | TC4421ESM | TC4422ESM |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| Driven Configuration | Low-Side | Low-Side |
| Channel Type | Single | Single |
| Number of Drivers | 1 | 1 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 9A, 9A | 9A, 9A |
| Input Type | Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | - |
| Rise / Fall Time (Typ) | 60ns, 60ns | 60ns, 60ns |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 8-SOIC (0.209", 5.30mm Width) | 8-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 8-SOIJ | 8-SOIJ |
