Please send RFQ , we will respond immediately.

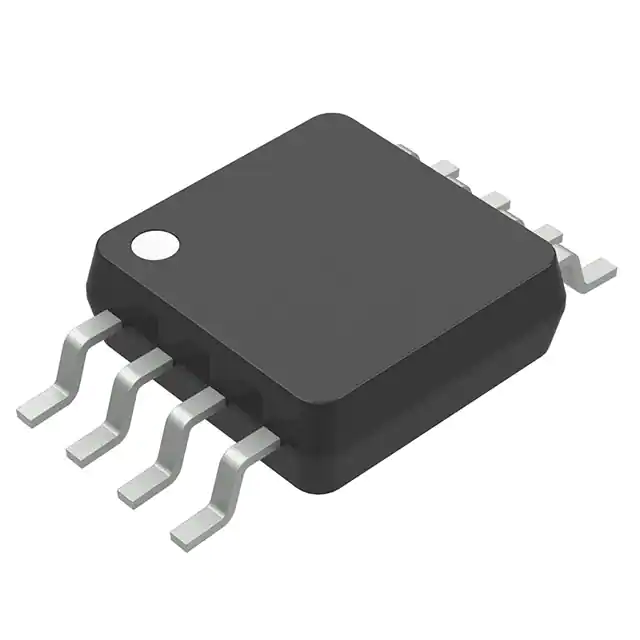

| Part Number | TC1410EUA713 | TC1411EUA713 | TC1412EUA713 | TC1413EUA713 | TC1410NEUA713 | TC1410EOA713 |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active |
| Driven Configuration | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side |
| Channel Type | Single | Single | Single | Single | Single | Single |
| Number of Drivers | 1 | 1 | 1 | 1 | 1 | 1 |
| Gate Type | N-Channel, P-Channel MOSFET | N-Channel, P-Channel MOSFET | N-Channel, P-Channel MOSFET | N-Channel, P-Channel MOSFET | N-Channel, P-Channel MOSFET | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 16V | 4.5V ~ 16V | 4.5V ~ 16V | 4.5V ~ 16V | 4.5V ~ 16V | 4.5V ~ 16V |
| Logic Voltage - VIL, VIH | 0.8V, 2V | 0.8V, 2V | 0.8V, 2V | 0.8V, 2V | 0.8V, 2V | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 500mA, 500mA | 1A, 1A | 2A, 2A | 3A, 3A | 500mA, 500mA | 500mA, 500mA |
| Input Type | Inverting | Inverting | Inverting | Inverting | Non-Inverting | Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - | - | - | - |
| Rise / Fall Time (Typ) | 25ns, 25ns | 25ns, 25ns | 18ns, 18ns | 20ns, 20ns | 25ns, 25ns | 25ns, 25ns |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-MSOP | 8-MSOP | 8-MSOP | 8-MSOP | 8-MSOP | 8-SOIC |
