Please send RFQ , we will respond immediately.

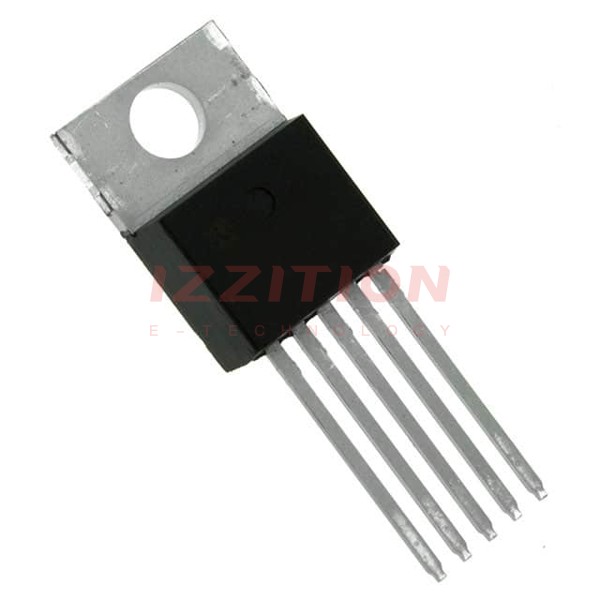

| Part Number | TC1265-2.5VAT | TC1263-2.5VAT |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 6V | 6V |
| Voltage - Output (Min/Fixed) | 2.5V | 2.5V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 1.4V @ 800mA | 0.65V @ 500mA |
| Current - Output | 800mA | 500mA |
| Current - Quiescent (Iq) | 130 µA | 130 µA |
| Current - Supply (Max) | - | - |
| PSRR | 64dB (1kHz) | 64dB (1kHz) |
| Control Features | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-220-5 | TO-220-5 |
| Supplier Device Package | TO-220-5 | TO-220-5 |
