Please send RFQ , we will respond immediately.

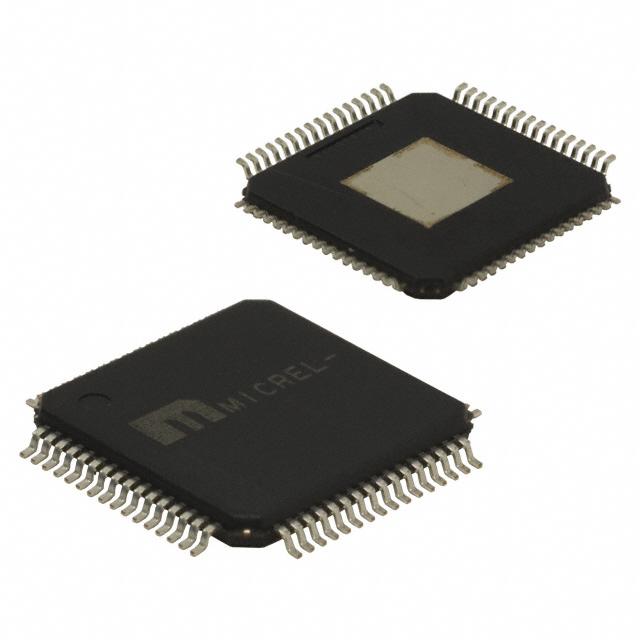

| Part Number | SY89531LHZ | SY89532LHZ | SY89533LHZ | SY89534LHZ | SY89535LHZ | SY89536LHZ | SY89538LHZ | SY89531LHC |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Clock/Frequency Synthesizer | Clock/Frequency Synthesizer | Clock/Frequency Synthesizer | Clock/Frequency Synthesizer | Clock/Frequency Synthesizer | Clock/Frequency Synthesizer | Clock Synthesizer/Fanout Buffer | Clock/Frequency Synthesizer |
| PLL | Yes | Yes | Yes | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes | Yes |
| Input | Crystal | Crystal | Crystal | CMOS, HSTL, LVDS, LVPECL, LVTTL, SSTL | CMOS, HSTL, LVDS, LVPECL, LVTTL, SSTL | CMOS, HSTL, LVDS, LVPECL, LVTTL, SSTL | CMOS, HSTL, LVDS, LVPECL, LVTTL, SSTL, Crystal | Crystal |
| Output | HSTL, LVPECL | LVPECL | LVDS, LVPECL | LVPECL | LVDS, LVPECL | HSTL, LVPECL | LVDS, LVPECL | HSTL, LVPECL |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:13 | 1:13 | 1:13 | 1:13 | 1:13 | 1:13 | 3:7 | 1:13 |
| Differential - Input:Output | No/Yes | No/Yes | No/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | No/Yes |
| Frequency - Max | 500MHz | 500MHz | 500MHz | 500MHz | 500MHz | 500MHz | 756MHz | 500MHz |
| Divider/Multiplier | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No |
| Voltage - Supply | 1.6V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 1.6V ~ 3.6V | 2.375V ~ 3.6V | 1.6V ~ 3.6V |
| Operating Temperature | 0°C ~ 85°C | 0°C ~ 85°C | 0°C ~ 85°C | 0°C ~ 85°C | 0°C ~ 85°C | 0°C ~ 85°C | 0°C ~ 85°C | 0°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 64-TQFP Exposed Pad | 64-TQFP Exposed Pad | 64-TQFP Exposed Pad | 64-TQFP Exposed Pad | 64-TQFP Exposed Pad | 64-TQFP Exposed Pad | 64-TQFP Exposed Pad | 64-TQFP Exposed Pad |
| Supplier Device Package | 64-TQFP-EP (10x10) | 64-TQFP-EP (10x10) | 64-TQFP-EP (10x10) | 64-TQFP-EP (10x10) | 64-TQFP-EP (10x10) | 64-TQFP-EP (10x10) | 64-TQFP-EP (10x10) | 64-TQFP-EP (10x10) |
