Please send RFQ , we will respond immediately.

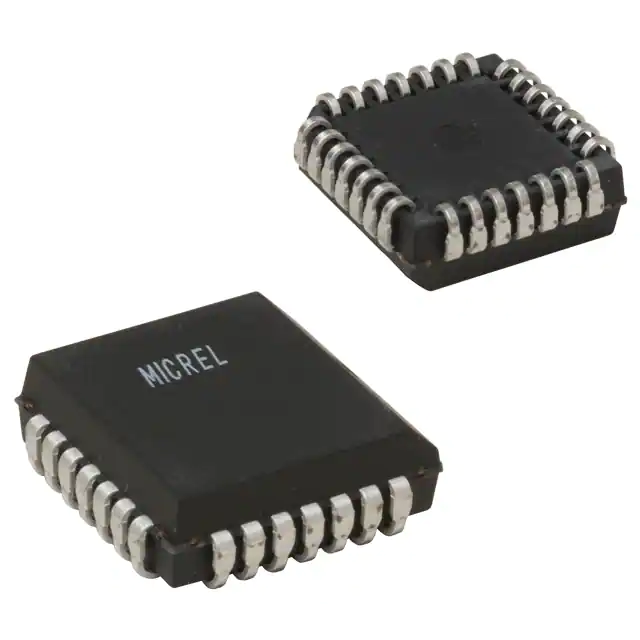

| Part Number | SY100S301JZ | SY100S302JZ | SY100S304JZ | SY100S307JZ | SY100S301JC |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Logic Type | NOR/OR Gate | NOR/OR Gate | AND/NAND Gate | XOR/NOR Gate | NOR/OR Gate |
| Number of Circuits | 3 | 5 | 5 | 5 | 3 |
| Number of Inputs | 15 Input (5, 5, 5) | 10 Input (2, 2, 2, 2, 2) | 10 Input (2, 2, 2, 2, 2) | 10 Input (2, 2, 2, 2, 2) | 15 Input (5, 5, 5) |
| Schmitt Trigger Input | No | No | No | No | No |
| Output Type | Differential | Differential | Differential | Differential | Differential |
| Current - Output High, Low | - | - | - | - | - |
| Voltage - Supply | 4.2V ~ 5.5V | 4.2V ~ 5.5V | 4.2V ~ 5.5V | 4.2V ~ 5.5V | 4.2V ~ 5.5V |
| Operating Temperature | 0°C ~ 85°C | 0°C ~ 85°C | 0°C ~ 85°C | 0°C ~ 85°C | 0°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.48x11.48) | 28-PLCC (11.48x11.48) | 28-PLCC (11.48x11.48) | 28-PLCC (11.48x11.48) | 28-PLCC (11.48x11.48) |
