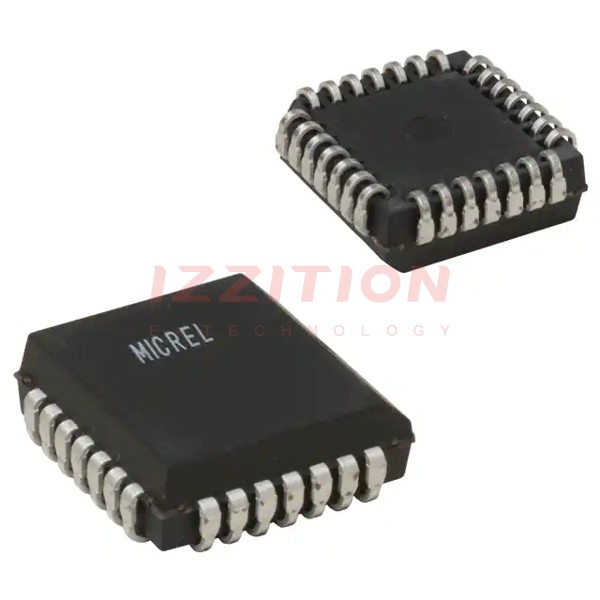

| Part Number | SY100H602JZ-TR | SY100H603JZ-TR | SY100H606JZ-TR | SY100H600JZ-TR | SY100H601JZ-TR | SY100H602JC-TR |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Discontinued at Digi-Key |
| Translator Type | Mixed Signal | Mixed Signal | Mixed Signal | Mixed Signal | Mixed Signal | Mixed Signal |
| Channel Type | Unidirectional | Unidirectional | Unidirectional | Unidirectional | Unidirectional | Unidirectional |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 |
| Channels per Circuit | 9 | 9 | 6 | 9 | 9 | 9 |
| Voltage - VCCA | - | - | - | - | - | - |
| Voltage - VCCB | - | - | - | - | - | - |
| Input Signal | TTL | ECL | TTL | TTL | ECL | TTL |
| Output Signal | ECL | TTL | PECL | ECL | TTL | ECL |
| Output Type | Non-Inverted | Tri-State, Non-Inverted | Differential | Non-Inverted | Tri-State, Non-Inverted | Non-Inverted |
| Data Rate | - | - | - | - | - | - |
| Operating Temperature | 0°C ~ 85°C (TA) | 0°C ~ 85°C (TA) | 0°C ~ 85°C (TA) | 0°C ~ 85°C (TA) | 0°C ~ 85°C (TA) | 0°C ~ 85°C (TA) |
| Features | - | - | - | - | Tri-State Input | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.48x11.48) | 28-PLCC (11.48x11.48) | 28-PLCC (11.48x11.48) | 28-PLCC (11.48x11.48) | 28-PLCC (11.48x11.48) | 28-PLCC (11.48x11.48) |
