Please send RFQ , we will respond immediately.
| Part Number | SY100E101JC-TR | SY100E101JI-TR | SY100E104JC-TR | SY100E107JC-TR | SY10E101JC-TR | SY100E101JY-TR |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Obsolete |
| Logic Type | NOR/OR Gate | NOR/OR Gate | AND/NAND Gate | XOR/XNOR Gate | NOR/OR Gate | NOR/OR Gate |
| Number of Circuits | 4 | 4 | 5 | 5 | 4 | 4 |
| Number of Inputs | 16 Input (4, 4, 4, 4) | 16 Input (4, 4, 4, 4) | 10 Input (2, 2, 2, 2, 2) | 10 Input (2, 2, 2, 2, 2) | 16 Input (4, 4, 4, 4) | 16 Input (4, 4, 4, 4) |
| Schmitt Trigger Input | No | No | No | No | No | No |
| Output Type | Differential | Differential | Differential | Differential | Differential | Differential |
| Current - Output High, Low | - | - | - | - | - | - |
| Voltage - Supply | 4.2V ~ 5.5V | 4.2V ~ 5.5V | 4.2V ~ 5.5V | 4.2V ~ 5.5V | 4.2V ~ 5.5V | 4.2V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | 0°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

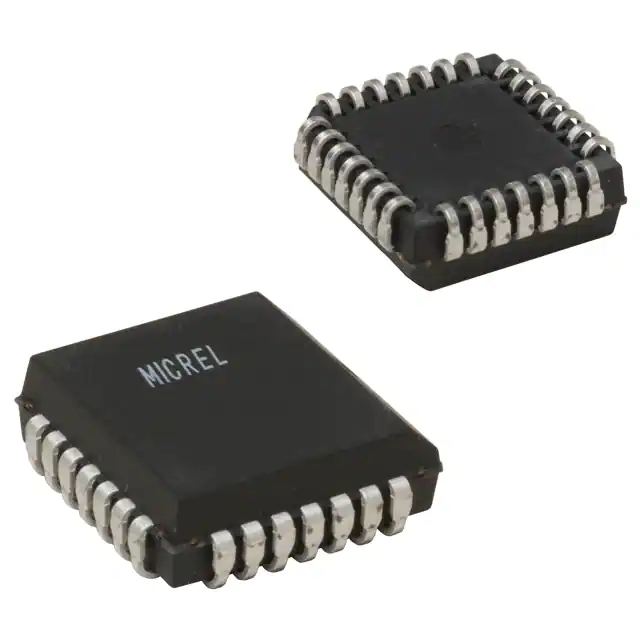

| Package / Case | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.48x11.48) | 28-PLCC (11.48x11.48) | 28-PLCC (11.48x11.48) | 28-PLCC (11.48x11.48) | 28-PLCC (11.48x11.48) | 28-PLCC (11.48x11.48) |
