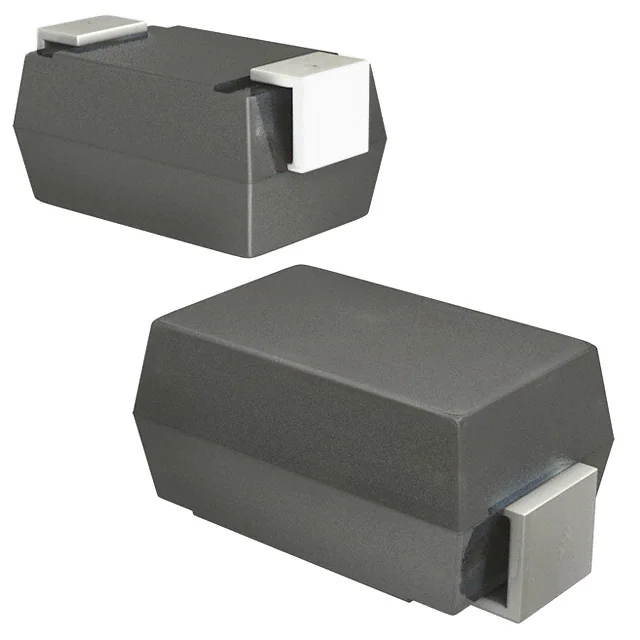

| Part Number | SMAJ13E3/TR13 | SMAJ130E3/TR13 | SMAJ13CE3/TR13 |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | - |
| Bidirectional Channels | - | - | 1 |
| Voltage - Reverse Standoff (Typ) | 13V | 130V | 13V |
| Voltage - Breakdown (Min) | 14.4V | 144V | 14.4V |
| Voltage - Clamping (Max) @ Ipp | 23.8V | 231V | 23.8V |
| Current - Peak Pulse (10/1000µs) | 21A | 2.2A | 21A |
| Power - Peak Pulse | 500W | 500W | 500W |
| Power Line Protection | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) |
