Please send RFQ , we will respond immediately.

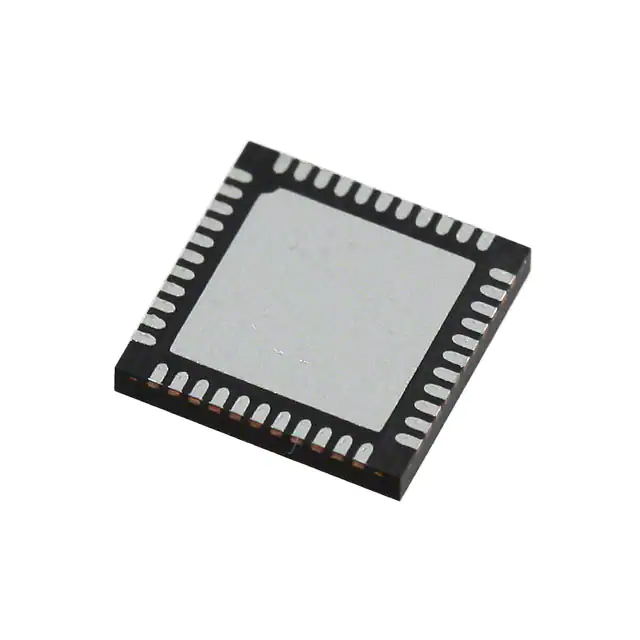

| Part Number | SM802128UMG-TR | SM802120UMG-TR | SM802121UMG-TR | SM802124UMG-TR |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| Type | - | - | - | - |
| PLL | Yes with Bypass | Yes | Yes | Yes with Bypass |
| Input | LVCMOS, Crystal | Crystal | LVCMOS, Crystal | LVCMOS |
| Output | LVPECL | HCSL, LVDS | LVPECL | CMOS |
| Number of Circuits | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 2:8 | 1:8 | 2:1 | 1:2 |
| Differential - Input:Output | No/Yes | No/Yes | No/Yes | No/Yes |
| Frequency - Max | 312.5MHz | 125MHz | 156.25MHz | 125MHz |
| Divider/Multiplier | Yes/No | Yes/No | Yes/No | Yes/No |
| Voltage - Supply | 2.375V ~ 3.465V | 2.375V ~ 3.465V | 2.375V ~ 3.465V | 2.375V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 44-VFQFN Exposed Pad | 44-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad |
| Supplier Device Package | 44-QFN (7x7) | 44-QFN (7x7) | 24-QFN (4x4) | 24-QFN (4x4) |
