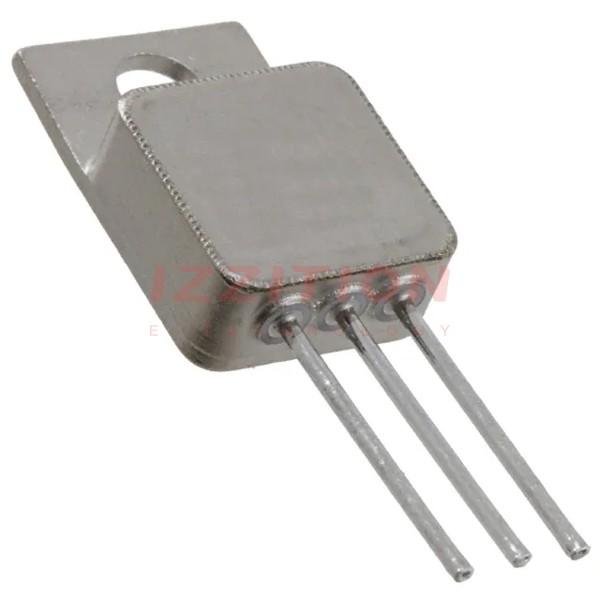

| Part Number | SG7812AG-DESC | SG7812AK-DESC | SG7812AT-DESC |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 35V | 50V | 35V |
| Voltage - Output (Min/Fixed) | 12V | 12V | 12V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 2.5V @ 1A | 2.5V @ 500mA | 2.5V @ 500mA |
| Current - Output | 1.5A | 1.5A | 500mA |
| Current - Quiescent (Iq) | 7 mA | - | 7 mA |
| Current - Supply (Max) | - | 7 mA | - |
| PSRR | 61dB (120Hz) | 61dB (120Hz) | 61dB (120Hz) |
| Control Features | - | Current Limit, Enable | - |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C (TA) | -55°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-257-3 | TO-204AA, TO-3 | TO-205AD, TO-39-3 Metal Can |
| Supplier Device Package | TO-257 | TO-204AD (TO-3) | TO-39 |
