Please send RFQ , we will respond immediately.

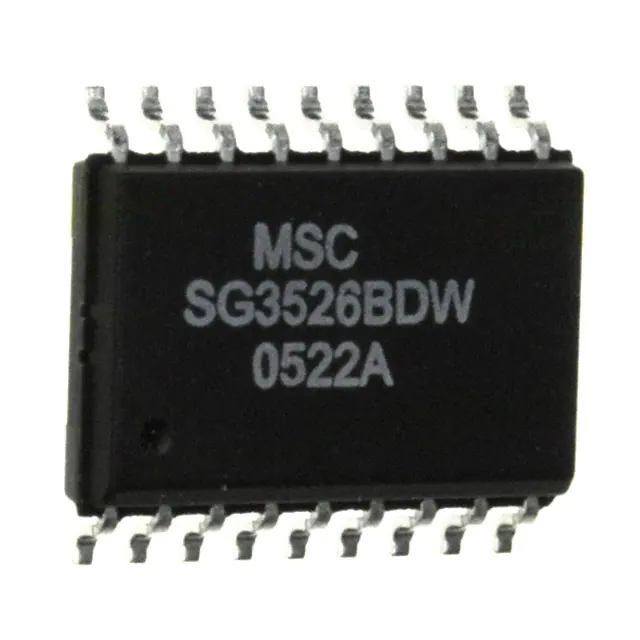

| Part Number | SG3526BDW | SG3526DW | SG2526BDW | SG3524BDW |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Obsolete |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | - |
| Function | Step-Down, Step-Up/Step-Down | Step-Down, Step-Up/Step-Down | Step-Down, Step-Up/Step-Down | - |
| Output Configuration | Positive | Positive | Positive | - |
| Topology | Buck, Flyback | Buck, Flyback | Buck, Flyback | - |
| Number of Outputs | 2 | 2 | 2 | - |
| Output Phases | 1 | 1 | 1 | - |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 35V | 8V ~ 35V | 8V ~ 35V | - |
| Frequency - Switching | 1Hz ~ 500kHz | 1Hz ~ 350kHz | 1Hz ~ 500kHz | - |
| Duty Cycle (Max) | 49% | 49% | 49% | - |
| Synchronous Rectifier | Yes | Yes | Yes | - |
| Clock Sync | No | No | No | - |
| Serial Interfaces | - | - | - | - |
| Control Features | Dead Time Control, Enable, Frequency Control, Reset, Soft Start | Dead Time Control, Enable, Frequency Control, Reset, Soft Start | Dead Time Control, Enable, Frequency Control, Reset, Soft Start | - |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | -25°C ~ 85°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 18-SOIC (0.295", 7.50mm Width) | 18-SOIC (0.295", 7.50mm Width) | 18-SOIC (0.295", 7.50mm Width) | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 18-SOIC | 18-SOIC | 18-SOIC | 16-SOIC |
