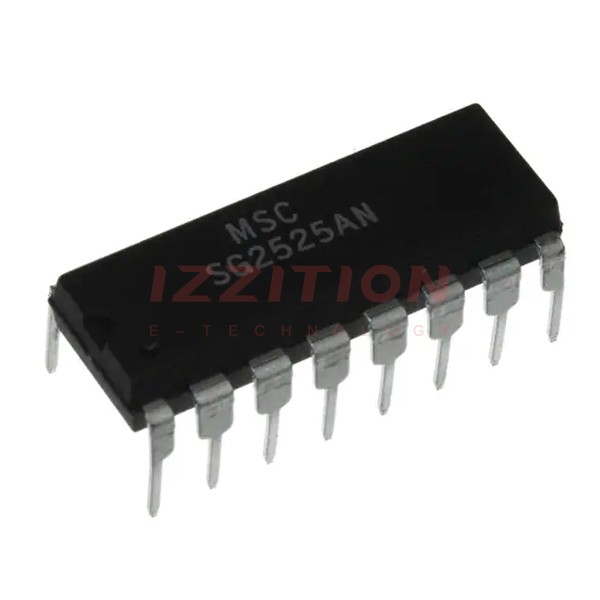

| Part Number | SG2525AN | SG3525AN | SG2525AP |
|---|---|---|---|
| Manufacturer | Microchip Technology | STMicroelectronics | STMicroelectronics |
| Product Status | Discontinued at Digi-Key | Active | Active |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Up/Step-Down | Step-Down, Step-Up/Step-Down | Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Push-Pull | Buck, Push-Pull | Buck, Push-Pull |
| Number of Outputs | 2 | 2 | 2 |
| Output Phases | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 35V | 8V ~ 35V | 8V ~ 35V |
| Frequency - Switching | 100Hz ~ 350kHz | 100Hz ~ 400kHz | 100Hz ~ 400kHz |
| Duty Cycle (Max) | 49% | 49% | 49% |
| Synchronous Rectifier | Yes | Yes | Yes |
| Clock Sync | Yes | Yes | Yes |
| Serial Interfaces | - | - | - |
| Control Features | Enable, Soft Start | Enable, Soft Start | Enable, Soft Start |
| Operating Temperature | -25°C ~ 85°C (TA) | 0°C ~ 70°C (TA) | -25°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Through Hole | Surface Mount |
| Package / Case | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-PDIP | 16-DIP | 16-SO |
