SG1825CJ-883B

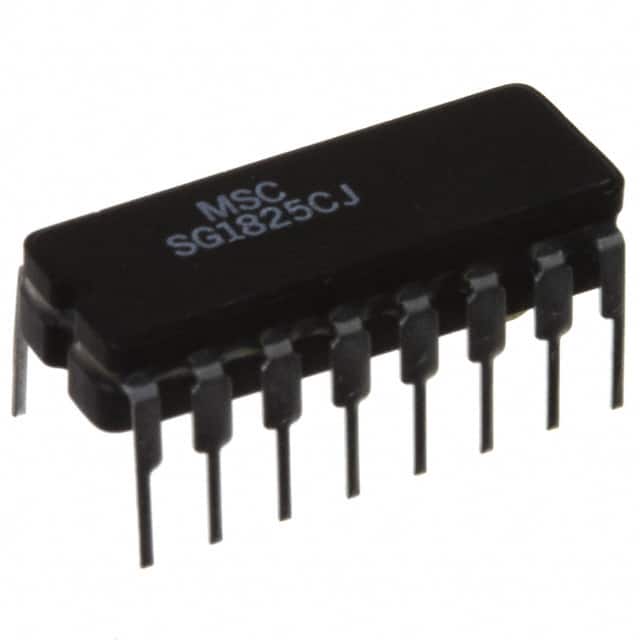

SG1825CJ-883B Image
×
Favorite
Compare
Add to RFQ
Share:
Microchip Technology SG1825CJ-883B
Manufacturer No:
SG1825CJ-883B
Manufacturer:
Microchip Technology
Package:
Tube
Datasheet:
SG1825CJ-883B Datasheet
ECAD Model:
-
Description:
IC REG CTRLR BUCK/FLYBACK 16DIP
Delivery:
Payment:
Product Attributes
Output Type:
Transistor Driver
Function:
Step-Down, Step-Up/Step-Down
Output Configuration:
Positive
Topology:
Buck, Flyback
Number of Outputs:
2
Output Phases:
1
Voltage - Supply (Vcc/Vdd):
10V ~ 30V
Frequency - Switching:
4kHz ~ 1.5MHz
Duty Cycle (Max):
85%
Synchronous Rectifier:
Yes
Clock Sync:
No
Serial Interfaces:
-
Control Features:
Current Limit, Ramp, Soft Start
Operating Temperature:
-55°C ~ 125°C (TA)
Mounting Type:
Through Hole
Package / Case:
-
Supplier Device Package:
16-CDIP
0
Remaining
View Similar
In Stock
UnitPrice:
-
Quantity:
507
Please send RFQ , we will respond immediately.
