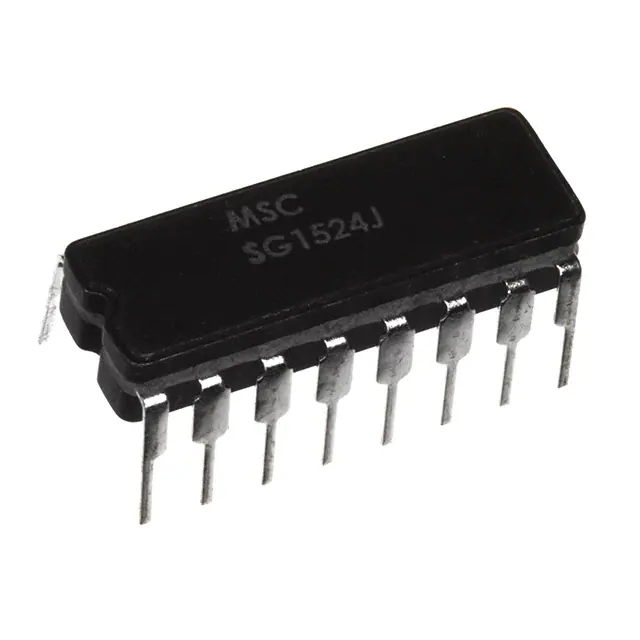

| Part Number | SG1524J-883B | SG1526J-883B |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| Output Type | Transistor Driver | Transistor Driver |
| Function | Step-Down, Step-Up/Step-Down | Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive | Positive |
| Topology | Buck, Flyback, Push-Pull | Buck, Flyback |
| Number of Outputs | 2 | 2 |
| Output Phases | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 40V | 8V ~ 35V |
| Frequency - Switching | 100kHz ~ 300kHz | 1Hz ~ 350kHz |
| Duty Cycle (Max) | 49% | 49% |
| Synchronous Rectifier | Yes | Yes |
| Clock Sync | No | No |
| Serial Interfaces | - | - |
| Control Features | Enable | Enable, Reset, Soft Start |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) | 18-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CERDIP | - |
