Please send RFQ , we will respond immediately.

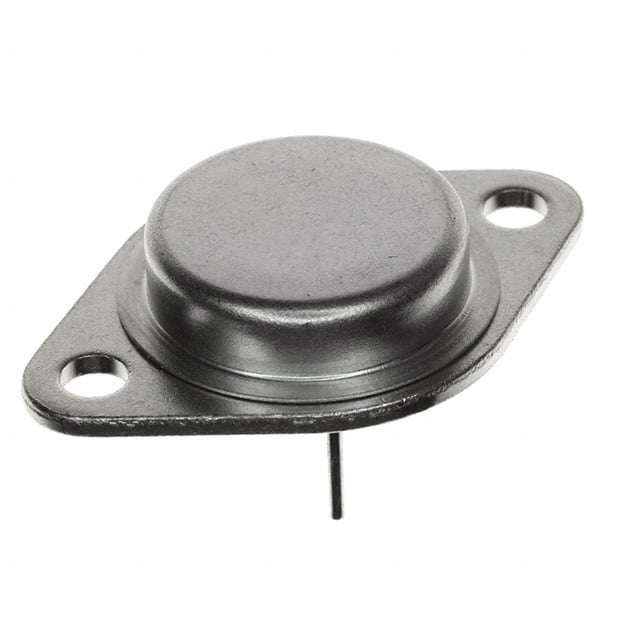

| Part Number | SG117K | SG117T | SG137K | SG117AK |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microsemi Corporation | Microchip Technology |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Obsolete | Discontinued at Digi-Key |
| Output Configuration | Positive | Positive | Negative | Positive |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 37V | 37V | -36V | 37V |
| Voltage - Output (Min/Fixed) | 1.25V | 1.25V | -1.25V | 1.25V |
| Voltage - Output (Max) | 37V | 37V | -36V | 37V |
| Voltage Dropout (Max) | - | - | - | - |
| Current - Output | 1.5A | 1.5A | 1.5A | 1.5A |
| Current - Quiescent (Iq) | - | - | - | - |
| Current - Supply (Max) | - | - | - | - |
| PSRR | 65dB ~ 80dB (120Hz) | 80dB (120Hz) | 60dB ~ 77dB (120Hz) | 80dB (120Hz) |
| Control Features | - | - | - | - |
| Protection Features | Over Current | Over Current | Over Current, Over Temperature, Over Voltage | Over Current |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-204AA, TO-3 | TO-205AD, TO-39-3 Metal Can | TO-204AA, TO-3 | TO-204AA, TO-3 |
| Supplier Device Package | TO-3 | TO-39 | TO-3 | TO-204AD (TO-3) |
