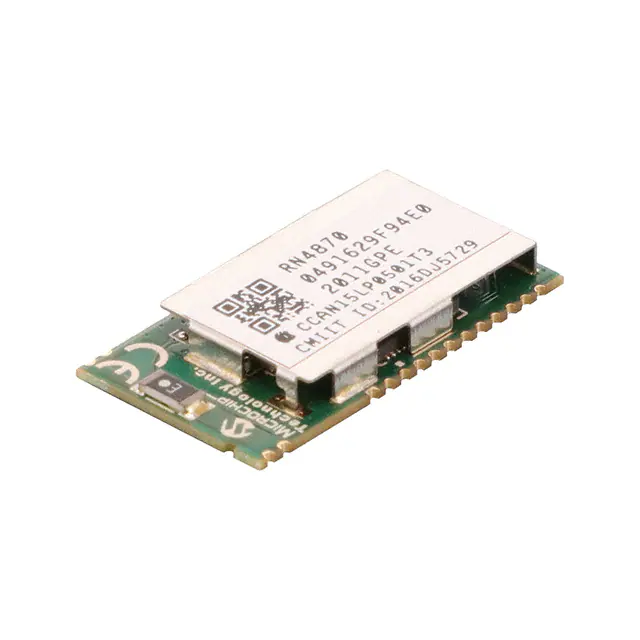

| Part Number | RN4870-I/RM130 | RN4871-I/RM130 | RN4870-I/RM140 |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| RF Family/Standard | Bluetooth | Bluetooth | Bluetooth |
| Protocol | Bluetooth v5.0 | Bluetooth v5.0 | Bluetooth v5.0 |
| Modulation | GFSK | GFSK | GFSK |
| Frequency | 2.4GHz | 2.4GHz | 2.402GHz ~ 2.48GHz |
| Data Rate | 10kbps | 10kbps | 10kbps |
| Power - Output | 0dBm | 0dBm | 0dBm |
| Sensitivity | -90dBm | -90dBm | -90dBm |
| Serial Interfaces | I²C, AIO, PIO, PWM, SPI, UART | I²C, AIO, PIO, PWM, SPI, UART | I²C, AIO, PIO, PWM, SPI, UART |
| Antenna Type | Integrated, Chip | Integrated, Chip | Integrated, Chip |
| Utilized IC / Part | RN4870 | RN4871 | RN4870 |
| Memory Size | 256kB Flash, 32kB ROM, 24kB SRAM | 256kB Flash, 32kB ROM, 24kB SRAM | - |
| Voltage - Supply | 1.9V ~ 3.6V | 1.9V ~ 3.6V | 1.9V ~ 3.6V |
| Current - Receiving | 13mA | 13mA | 13mA |
| Current - Transmitting | 13mA | 13mA | 13mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 33-SMD Module | 16-SMD Module | 33-SMD Module |
