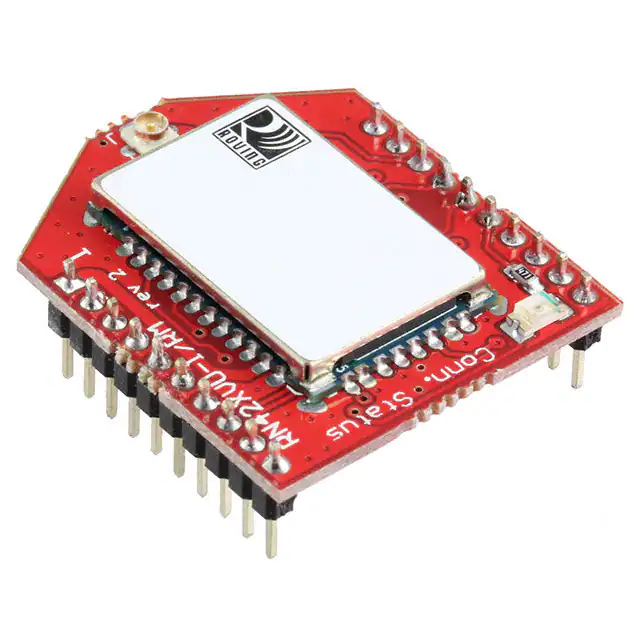

| Part Number | RN42XVU-I/RM | RN41XVU-I/RM | RN42XVP-I/RM |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Last Time Buy | Obsolete | Last Time Buy |
| RF Family/Standard | Bluetooth | Bluetooth | Bluetooth |
| Protocol | Bluetooth v2.1 +EDR, Class 2 | Bluetooth v2.1 +EDR, Class 2 | Bluetooth v2.1 +EDR, Class 2 |
| Modulation | FHSS, GFSK | FHSS, GFSK | FHSS, GFSK |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate | 300kbps | 300kbps | 300kbps |
| Power - Output | 4dBm | 16dBm | 4dBm |
| Sensitivity | -80dBm | -80dBm | -86dBm |
| Serial Interfaces | UART | UART | UART |
| Antenna Type | Antenna Not Included, U.FL | Antenna Not Included, U.FL | Integrated, Trace |
| Utilized IC / Part | - | - | - |
| Memory Size | - | - | - |
| Voltage - Supply | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Current - Receiving | - | 35mA | 35mA |
| Current - Transmitting | - | 65mA | 65mA |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 20-DIP Module | 20-DIP Module | 20-DIP Module |
