Please send RFQ , we will respond immediately.

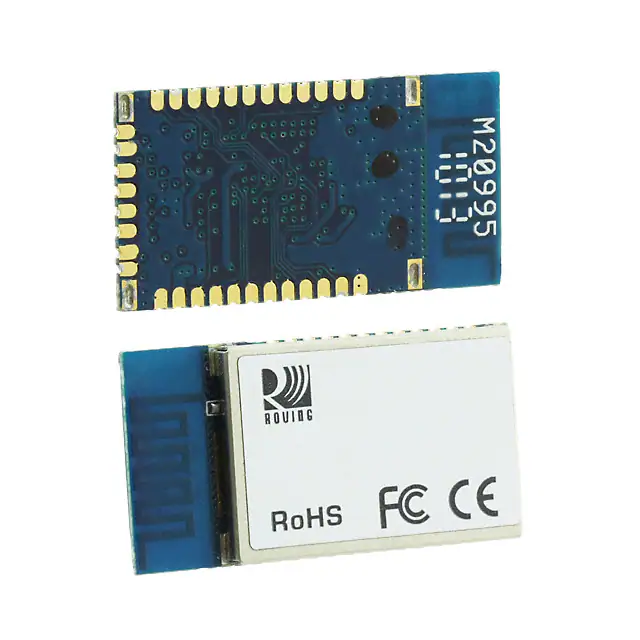

| Part Number | RN42-I/RM | RN52-I/RM | RN42N-I/RM | RN42U-I/RM | RN41-I/RM |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Last Time Buy | Last Time Buy | Last Time Buy | Obsolete | Obsolete |
| RF Family/Standard | Bluetooth | Bluetooth | Bluetooth | Bluetooth | Bluetooth |
| Protocol | Bluetooth v2.1 +EDR, Class 2 | Bluetooth v3.0, Class 2 | Bluetooth v2.1 +EDR, Class 2 | Bluetooth v2.1 +EDR, Class 2 | Bluetooth v2.1 +EDR, Class 1 |
| Modulation | - | DPSK, DQPSK, GFSK | - | - | FHSS, GFSK |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate | 300kbps | 3Mbps | 300kbps | 3Mbps | 300kbps |
| Power - Output | 4dBm | 4dBm | 4dBm | 4dBm | 16dBm |
| Sensitivity | -80dBm | -85dBm | -80dBm | -80dBm | -80dBm |
| Serial Interfaces | UART | AIO, I²S, SPI, UART, USB | UART | USB | SPI, UART, USB |
| Antenna Type | Integrated, Trace | Integrated, Trace | Antenna Not Included, U.FL | Integrated, Trace | Integrated, Chip |
| Utilized IC / Part | - | - | - | - | - |
| Memory Size | - | 16MB Flash | - | - | - |
| Voltage - Supply | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Current - Receiving | - | 30mA | - | - | 35mA |
| Current - Transmitting | 30mA | 30mA | 30mA | 30mA | 65mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 35-SMD Module | 50-SMD Module | 24-SMD Module | Module | 35-SMD Module |
