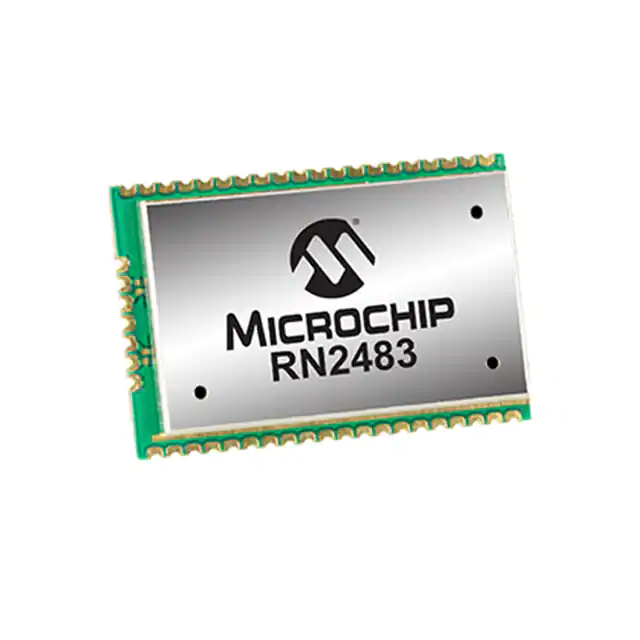

| Part Number | RN2483A-I/RM104 | RN2483A-I/RM105 | RN2483A-I/RM103 |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Discontinued at Digi-Key |
| RF Family/Standard | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz |
| Protocol | LoRa™ | LoRa™ | LoRa™ |
| Modulation | FSK, GFSK | FSK, GFSK | FSK, GFSK |
| Frequency | 433MHz, 868MHz | 433.05MHz ~ 434.79MHz, 863MHz ~ 870MHz | 433MHz, 868MHz |
| Data Rate | 300kbps | 300kbps | 300kbps |
| Power - Output | 14dBm | 14dBm | 14dBm |
| Sensitivity | -146dBm | -146dBm | -146dBm |
| Serial Interfaces | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART |
| Antenna Type | Antenna Not Included, Castellation | Antenna Not Included, Castellation | Antenna Not Included, Castellation |
| Utilized IC / Part | - | - | - |
| Memory Size | - | - | - |
| Voltage - Supply | 2.1V ~ 3.6V | 2.1V ~ 3.6V | 2.1V ~ 3.6V |
| Current - Receiving | 14mA | - | 14mA |
| Current - Transmitting | 39mA | 14.1mA ~ 39mA | 39mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | Module | Module | Module |
