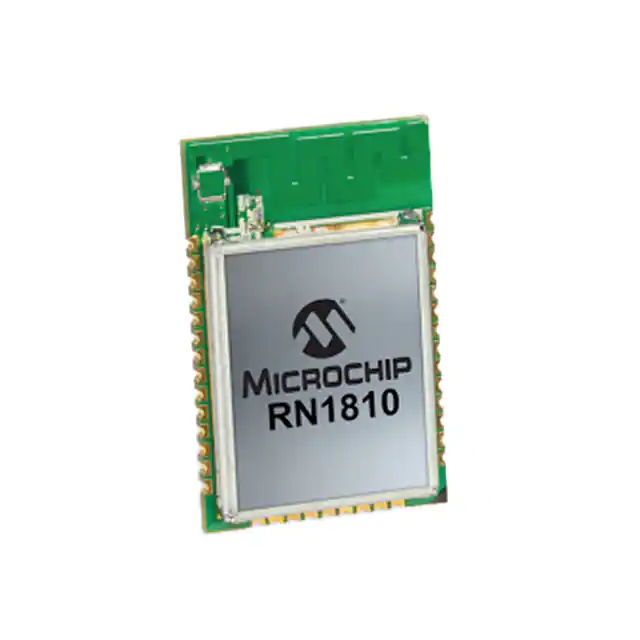

| Part Number | RN1810-I/RM110 | RN1810E-I/RM110 | RN1810-I/RM100 |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Obsolete | Obsolete |
| RF Family/Standard | WiFi | WiFi | WiFi |
| Protocol | 802.11b/g/n | 802.11b/g/n | 802.11b/g/n |
| Modulation | 16QAM, 64QAM, BPSK, CCK, DSSS, QPSK | 16QAM, 64QAM, BPSK, CCK, DSSS, QPSK | - |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate | 54Mbps | 54Mbps | 54Mbps |
| Power - Output | 18dBm | 18dBm | 18dBm |
| Sensitivity | -94dBm | -94dBm | -94dBm |
| Serial Interfaces | UART | UART | UART |
| Antenna Type | Integrated, Trace | Antenna Not Included | Integrated, Trace |
| Utilized IC / Part | - | - | - |
| Memory Size | - | - | - |
| Voltage - Supply | 3.3V | 3.3V | 3.3V |
| Current - Receiving | 64mA | 64mA | 64mA |
| Current - Transmitting | 211mA ~ 263mA | 211mA ~ 263mA | 247mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 37-SMD Module | 37-SMD Module | Module |
