Please send RFQ , we will respond immediately.

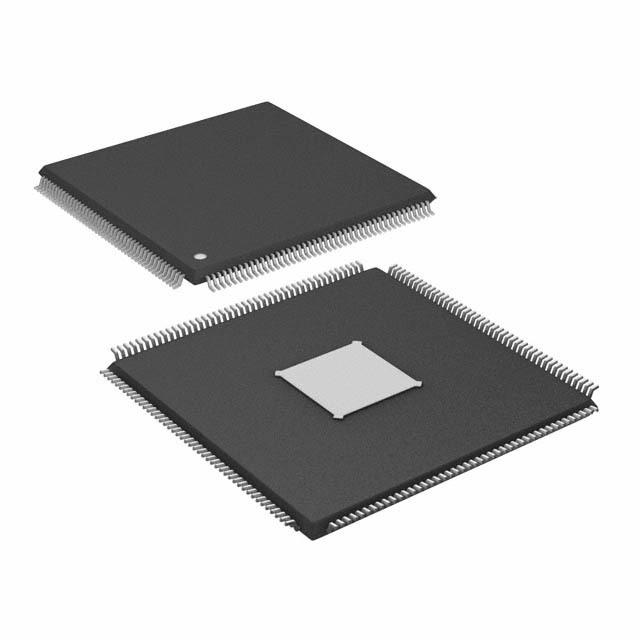

| Part Number | PIC32MZ2025DAS176T-I/2J | PIC32MZ2025DAS176T-V/2J | PIC32MZ2025DAA176T-I/2J | PIC32MZ2025DAB176T-I/2J | PIC32MZ2025DAG176T-I/2J | PIC32MZ2025DAH176T-I/2J | PIC32MZ2025DAK176T-I/2J | PIC32MZ2025DAL176T-I/2J | PIC32MZ2025DAR176T-I/2J | PIC32MZ2025DAS176-I/2J |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Core Processor | MIPS32® microAptiv™ | MIPS32® microAptiv™ | MIPS32® microAptiv™ | MIPS32® microAptiv™ | MIPS32® microAptiv™ | MIPS32® microAptiv™ | MIPS32® microAptiv™ | MIPS32® microAptiv™ | MIPS32® microAptiv™ | MIPS32® microAptiv™ |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, PMP, SPI, SQI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, PMP, SPI, SQI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, PMP, SPI, SQI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, PMP, SPI, SQI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, PMP, SPI, SQI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, PMP, SPI, SQI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, PMP, SPI, SQI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, PMP, SPI, SQI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, PMP, SPI, SQI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, PMP, SPI, SQI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, HLVD, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, HLVD, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, HLVD, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, HLVD, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, HLVD, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, HLVD, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, HLVD, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, HLVD, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, HLVD, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, HLVD, I²S, POR, PWM, WDT |
| Number of I/O | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Program Memory Size | 2MB (2M x 8) | 2MB (2M x 8) | 2MB (2M x 8) | 2MB (2M x 8) | 2MB (2M x 8) | 2MB (2M x 8) | 2MB (2M x 8) | 2MB (2M x 8) | 2MB (2M x 8) | 2MB (2M x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - | - | - | - |
| RAM Size | 256K x 8 + 32MB DDR2 SDRAM | 256K x 8 + 32MB DDR2 SDRAM | 256K x 8 | 256K x 8 | 256K x 8 | 256K x 8 | 256K x 8 | 256K x 8 | 256K x 8 + 32MB DDR2 SDRAM | 256K x 8 + 32MB DDR2 SDRAM |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V |
| Data Converters | A/D 45x12b | A/D 45x12b | A/D 45x12b | A/D 45x12b | A/D 45x12b | A/D 45x12b | A/D 45x12b | A/D 45x12b | A/D 45x12b | A/D 45x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 176-LQFP Exposed Pad | 176-LQFP Exposed Pad | 176-LQFP Exposed Pad | 176-LQFP Exposed Pad | 176-LQFP Exposed Pad | 176-LQFP Exposed Pad | 176-LQFP Exposed Pad | 176-LQFP Exposed Pad | 176-LQFP Exposed Pad | 176-LQFP Exposed Pad |
| Supplier Device Package | 176-LQFP (20x20) | 176-LQFP (20x20) | 176-LQFP (20x20) | 176-LQFP (20x20) | 176-LQFP (20x20) | 176-LQFP (20x20) | 176-LQFP (20x20) | 176-LQFP (20x20) | 176-LQFP (20x20) | 176-LQFP (20x20) |
