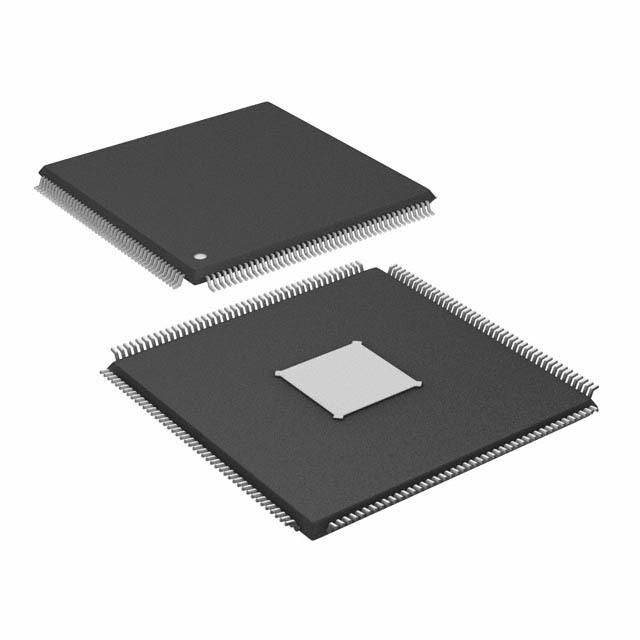

| Part Number | PIC32MZ1064DAB176-I/2J | PIC32MZ1064DAB176T-I/2J | PIC32MZ1064DAG176-I/2J | PIC32MZ1064DAH176-I/2J | PIC32MZ1064DAR176-I/2J | PIC32MZ1064DAK176-I/2J | PIC32MZ1064DAL176-I/2J | PIC32MZ1064DAS176-I/2J | PIC32MZ1064DAA176-I/2J |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Core Processor | MIPS32® microAptiv™ | MIPS32® microAptiv™ | MIPS32® microAptiv™ | MIPS32® microAptiv™ | MIPS32® microAptiv™ | MIPS32® microAptiv™ | MIPS32® microAptiv™ | MIPS32® microAptiv™ | MIPS32® microAptiv™ |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, PMP, SPI, SQI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, PMP, SPI, SQI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, PMP, SPI, SQI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, PMP, SPI, SQI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, PMP, SPI, SQI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, PMP, SPI, SQI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, PMP, SPI, SQI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, PMP, SPI, SQI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, PMP, SPI, SQI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, HLVD, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, HLVD, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, HLVD, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, HLVD, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, HLVD, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, HLVD, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, HLVD, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, HLVD, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, HLVD, I²S, POR, PWM, WDT |
| Number of I/O | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Program Memory Size | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - | - | - |
| RAM Size | 640K x 8 | 640K x 8 | 640K x 8 | 640K x 8 | 640K x 8 + 32MB DDR2 SDRAM | 640K x 8 | 640K x 8 | 640K x 8 + 32MB DDR2 SDRAM | 640K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 3.6V |
| Data Converters | A/D 45x12b | A/D 45x12b | A/D 45x12b | A/D 45x12b | A/D 45x12b | A/D 45x12b | A/D 45x12b | A/D 45x12b | A/D 45x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 176-LQFP Exposed Pad | 176-LQFP Exposed Pad | 176-LQFP Exposed Pad | 176-LQFP Exposed Pad | 176-LQFP Exposed Pad | 176-LQFP Exposed Pad | 176-LQFP Exposed Pad | 176-LQFP Exposed Pad | 176-LQFP Exposed Pad |
| Supplier Device Package | 176-LQFP (20x20) | 176-LQFP (20x20) | 176-LQFP (20x20) | 176-LQFP (20x20) | 176-LQFP (20x20) | 176-LQFP (20x20) | 176-LQFP (20x20) | 176-LQFP (20x20) | 176-LQFP (20x20) |
