Please send RFQ , we will respond immediately.

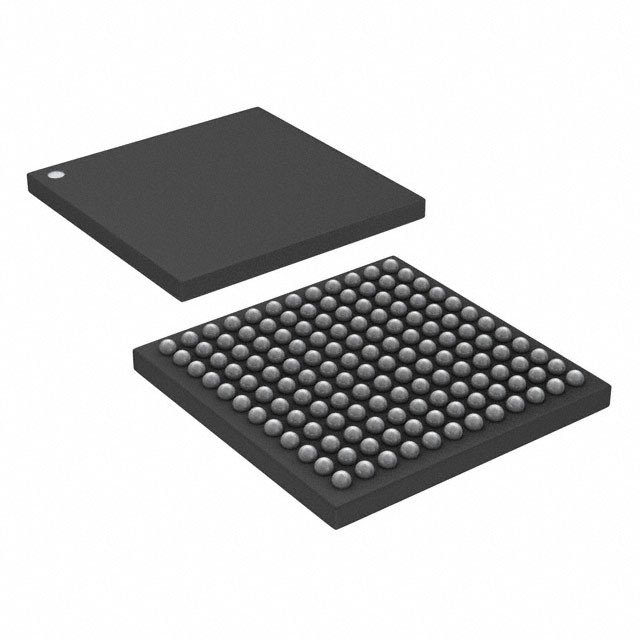

| Part Number | PIC32MZ1024EFH144-I/JWX | PIC32MZ1024EFK144-I/JWX | PIC32MZ1024EFM144-I/JWX | PIC32MZ1024EFH144T-I/JWX | PIC32MZ1024EFE144-I/JWX | PIC32MZ1024EFF144-I/JWX | PIC32MZ1024EFG144-I/JWX | PIC32MZ1024EFH144-E/JWX |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Core Processor | MIPS32® M-Class | MIPS32® M-Class | MIPS32® M-Class | MIPS32® M-Class | MIPS32® M-Class | MIPS32® M-Class | MIPS32® M-Class | MIPS32® M-Class |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz | 180MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, PMP, SPI, SQI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, PMP, SPI, SQI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, PMP, SPI, SQI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, PMP, SPI, SQI, UART/USART, USB OTG | EBI/EMI, Ethernet, I²C, PMP, SPI, SQI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, PMP, SPI, SQI, UART/USART, USB OTG | EBI/EMI, Ethernet, I²C, PMP, SPI, SQI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, PMP, SPI, SQI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| Number of I/O | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Program Memory Size | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - | - |
| RAM Size | 512K x 8 | 256K x 8 | 512K x 8 | 512K x 8 | 256K x 8 | 256K x 8 | 512K x 8 | 512K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.1V ~ 3.6V | 2.1V ~ 3.6V | 2.1V ~ 3.6V | 2.1V ~ 3.6V | 2.1V ~ 3.6V | 2.1V ~ 3.6V | 2.1V ~ 3.6V | 2.1V ~ 3.6V |
| Data Converters | A/D 48x12b | A/D 48x12b | A/D 48x12b | A/D 48x12b | A/D 48x12b | A/D 48x12b | A/D 48x12b | A/D 48x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 144-TFBGA | 144-TFBGA | 144-TFBGA | 144-TFBGA | 144-TFBGA | 144-TFBGA | 144-TFBGA | 144-TFBGA |
| Supplier Device Package | 144-TFBGA (7x7) | 144-TFBGA (7x7) | 144-TFBGA (7x7) | 144-TFBGA (7x7) | 144-TFBGA (7x7) | 144-TFBGA (7x7) | 144-TFBGA (7x7) | 144-TFBGA (7x7) |
