| Part Number | PIC32MZ0512EFF124-I/TL | PIC32MZ0512EFF124T-I/TL | PIC32MZ0512EFK124-I/TL | PIC32MZ0512EFE124-I/TL | PIC32MZ0512EFF124-E/TL |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Core Processor | MIPS32® M-Class | MIPS32® M-Class | MIPS32® M-Class | MIPS32® M-Class | MIPS32® M-Class |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 200MHz | 200MHz | 200MHz | 200MHz | 180MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, PMP, SPI, SQI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, PMP, SPI, SQI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, PMP, SPI, SQI, UART/USART, USB OTG | EBI/EMI, Ethernet, I²C, PMP, SPI, SQI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, PMP, SPI, SQI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| Number of I/O | 97 | 97 | 97 | 97 | 97 |
| Program Memory Size | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - |
| RAM Size | 128K x 8 | 128K x 8 | 128K x 8 | 128K x 8 | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.1V ~ 3.6V | 2.1V ~ 3.6V | 2.1V ~ 3.6V | 2.1V ~ 3.6V | 2.1V ~ 3.6V |
| Data Converters | A/D 48x12b | A/D 48x12b | A/D 48x12b | A/D 48x12b | A/D 48x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

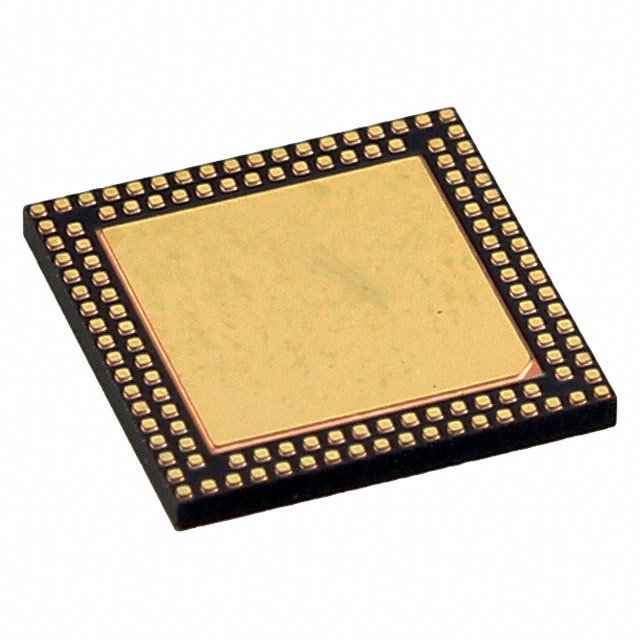

| Package / Case | 124-VFTLA Dual Rows, Exposed Pad | 124-VFTLA Dual Rows, Exposed Pad | 124-VFTLA Dual Rows, Exposed Pad | 124-VFTLA Dual Rows, Exposed Pad | 124-VFTLA Dual Rows, Exposed Pad |
| Supplier Device Package | 124-VTLA (9x9) | 124-VTLA (9x9) | 124-VTLA (9x9) | 124-VTLA (9x9) | 124-VTLA (9x9) |
