Please send RFQ , we will respond immediately.

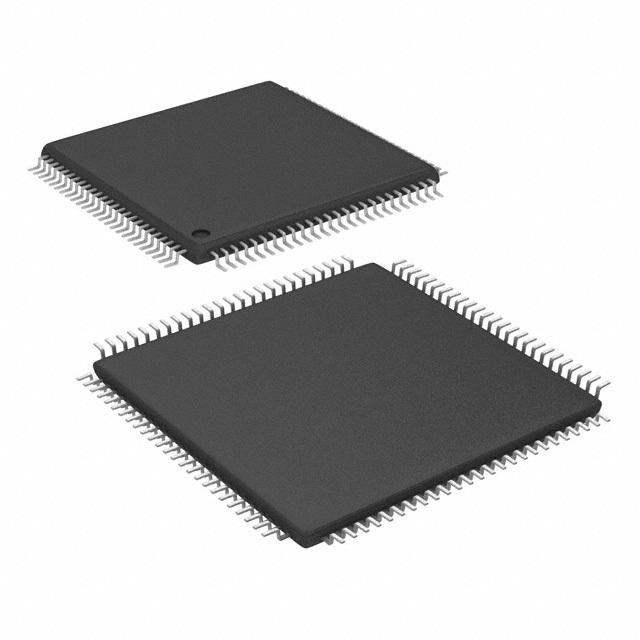

| Part Number | PIC24HJ128GP510A-I/PF | PIC24HJ128GP510A-I/PT | PIC24HJ128GP510AT-I/PF | PIC24HJ128GP510T-I/PF | PIC24HJ128GP210A-I/PF | PIC24HJ128GP310A-I/PF | PIC24HJ128GP510-I/PF | PIC24HJ128GP510A-E/PF | PIC24HJ128GP510A-H/PF |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Core Processor | PIC | PIC | PIC | PIC | PIC | PIC | PIC | PIC | PIC |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 40 MIPs | 40 MIPs | 40 MIPs | 40 MIPs | 40 MIPs | 40 MIPs | 40 MIPs | 40 MIPs | 20 MIPS |
| Connectivity | CANbus, I²C, IrDA, LINbus, SPI, UART/USART | CANbus, I²C, IrDA, LINbus, SPI, UART/USART | CANbus, I²C, IrDA, LINbus, SPI, UART/USART | CANbus, I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART | CANbus, I²C, IrDA, LINbus, SPI, UART/USART | CANbus, I²C, IrDA, LINbus, SPI, UART/USART | CANbus, I²C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 |
| Program Memory Size | 128KB (43K x 24) | 128KB (43K x 24) | 128KB (43K x 24) | 128KB (43K x 24) | 128KB (43K x 24) | 128KB (43K x 24) | 128KB (43K x 24) | 128KB (43K x 24) | 128KB (43K x 24) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - | - | - |
| RAM Size | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 | 16K x 8 | 8K x 8 | 8K x 8 | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Data Converters | A/D 32x10b/12b | A/D 32x10b/12b | A/D 32x10b/12b | A/D 32x10b/12b | A/D 32x10b/12b | A/D 32x10b/12b | A/D 32x10b/12b | A/D 32x10b/12b | A/D 32x10b/12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 150°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 100-TQFP | 100-TQFP | 100-TQFP | 100-TQFP | 100-TQFP | 100-TQFP | 100-TQFP | 100-TQFP | 100-TQFP |
| Supplier Device Package | 100-TQFP (14x14) | 100-TQFP (12x12) | 100-TQFP (14x14) | 100-TQFP (14x14) | 100-TQFP (14x14) | 100-TQFP (14x14) | 100-TQFP (14x14) | 100-TQFP (14x14) | 100-TQFP (14x14) |
