Please send RFQ , we will respond immediately.

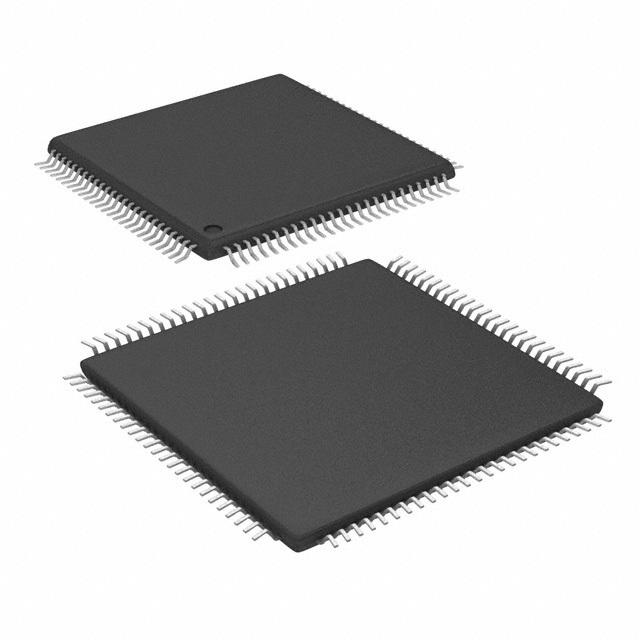

| Part Number | PIC24FJ256GB110T-I/PT | PIC24FJ256GB610T-I/PT | PIC24FJ256GB410T-I/PT | PIC24FJ256GB210T-I/PT | PIC24FJ256GA110T-I/PT | PIC24FJ256GB110-I/PT | PIC24FJ256GB110T-I/PF |
|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Core Processor | PIC | PIC | PIC | PIC | PIC | PIC | PIC |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz |
| Connectivity | I²C, SPI, UART/USART, USB OTG | I²C, IrDA, LINbus, PMP, SPI, UART/USART, USB OTG | I²C, IrDA, LINbus, PMP/PSP, SPI, UART/USART, USB OTG | I²C, IrDA, SPI, UART/USART, USB OTG | I²C, PMP, SPI, UART/USART | I²C, SPI, UART/USART, USB OTG | I²C, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, LVD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, HLVD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, LCD, LVD, POR, PWM, WDT | Brown-out Detect/Reset, LVD, POR, PWM, WDT | Brown-out Detect/Reset, LVD, POR, PWM, WDT | Brown-out Detect/Reset, LVD, POR, PWM, WDT | Brown-out Detect/Reset, LVD, POR, PWM, WDT |
| Number of I/O | 83 | 85 | 84 | 84 | 85 | 83 | 83 |
| Program Memory Size | 256KB (85.5K x 24) | 256KB (85.5K x 24) | 256KB (85.5K x 24) | 256KB (85.5K x 24) | 256KB (85.5K x 24) | 256KB (85.5K x 24) | 256KB (85.5K x 24) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - |
| RAM Size | 16K x 8 | 32K x 8 | 16K x 8 | 96K x 8 | 16K x 8 | 16K x 8 | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V | 2V ~ 3.6V | 2V ~ 3.6V | 2.2V ~ 3.6V | 2V ~ 3.6V | 2V ~ 3.6V | 2V ~ 3.6V |
| Data Converters | A/D 16x10b | A/D 24x10/12b | A/D 24x10/12b; D/A 1x10b | A/D 24x10b | A/D 16x10b | A/D 16x10b | A/D 16x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 100-TQFP | 100-TQFP | 100-TQFP | 100-TQFP | 100-TQFP | 100-TQFP | 100-TQFP |
| Supplier Device Package | 100-TQFP (12x12) | 100-TQFP (12x12) | 100-TQFP (12x12) | 100-TQFP (12x12) | 100-TQFP (12x12) | 100-TQFP (12x12) | 100-TQFP (14x14) |
