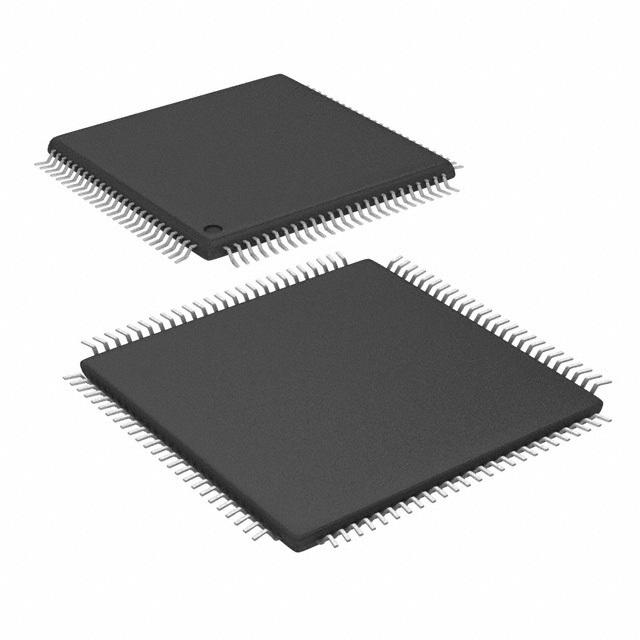

| Part Number | PIC18F96J60-I/PT | PIC18F97J60-I/PT | PIC18F96J65-I/PT | PIC18F96J60T-I/PT | PIC18F86J60-I/PT | PIC18F96J60-I/PF |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Obsolete | Active | Active |
| Core Processor | PIC | PIC | PIC | PIC | PIC | PIC |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 41.667MHz | 41.667MHz | 41.667MHz | 41.667MHz | 41.667MHz | 41.667MHz |
| Connectivity | EBI/EMI, Ethernet, I²C, SPI, UART/USART | EBI/EMI, Ethernet, I²C, SPI, UART/USART | EBI/EMI, Ethernet, I²C, SPI, UART/USART | EBI/EMI, Ethernet, I²C, SPI, UART/USART | Ethernet, I²C, SPI, UART/USART | EBI/EMI, Ethernet, I²C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 70 | 70 | 70 | 70 | 55 | 70 |
| Program Memory Size | 64KB (32K x 16) | 128KB (64K x 16) | 96KB (48K x 16) | 64KB (32K x 16) | 64KB (32K x 16) | 64KB (32K x 16) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - |
| RAM Size | 3808 x 8 | 3808 x 8 | 3808 x 8 | 3808 x 8 | 3808 x 8 | 3808 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V | 2V ~ 3.6V | 2V ~ 3.6V | 2V ~ 3.6V | 2V ~ 3.6V | 2V ~ 3.6V |
| Data Converters | A/D 16x10b | A/D 16x10b | A/D 16x10b | A/D 16x10b | A/D 15x10b | A/D 16x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 100-TQFP | 100-TQFP | 100-TQFP | 100-TQFP | 80-TQFP | 100-TQFP |
| Supplier Device Package | 100-TQFP (12x12) | 100-TQFP (12x12) | 100-TQFP (12x12) | 100-TQFP (12x12) | 80-TQFP (12x12) | 100-TQFP (14x14) |
