Please send RFQ , we will respond immediately.
| Part Number | PIC18F15Q40-I/REB | PIC18F16Q40-I/REB | PIC18F15Q41-I/REB | PIC18F15Q40T-I/REB | PIC18F14Q40-I/REB | PIC18F15Q40-E/REB |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active |
| Core Processor | PIC | PIC | PIC | PIC | PIC | PIC |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 64MHz | 64MHz | 64MHz | 64MHz | 64MHz | 64MHz |
| Connectivity | I²C, LINbus, SPI, UART/USART | I²C, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 18 | 18 | 18 | 18 | 18 | 18 |
| Program Memory Size | 32KB (32K x 8) | 64KB (64K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 16KB (16K x 8) | 32KB (32K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 512 x 8 | 512 x 8 | 512 x 8 | 512 x 8 | 512 x 8 | 512 x 8 |
| RAM Size | 2K x 8 | 4K x 8 | 2K x 8 | 2K x 8 | 1K x 8 | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Data Converters | A/D 7x12b; D/A 2x8b | A/D 17x12b; D/A 2x8b | A/D 17x12b; D/A 2x8b | A/D 7x12b; D/A 2x8b | A/D 7x12b; D/A 2x8b | A/D 7x12b; D/A 2x8b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

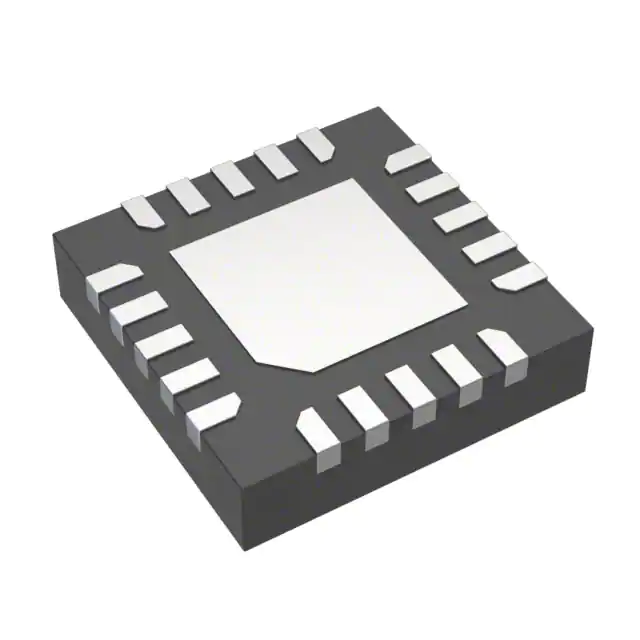

| Package / Case | 20-VFQFN Exposed Pad | 20-VFQFN Exposed Pad | 20-VFQFN Exposed Pad | 20-VFQFN Exposed Pad | 20-VFQFN Exposed Pad | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-VQFN (3x3) | 20-VQFN (3x3) | 20-VQFN (3x3) | 20-VQFN (3x3) | 20-VQFN (3x3) | 20-VQFN (3x3) |
