| Part Number | PIC18C601-I/L | PIC18C801-I/L | PIC18C601T-I/L |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Obsolete |
| Core Processor | PIC | PIC | PIC |
| Core Size | 8-Bit | 8-Bit | 8-Bit |
| Speed | 25MHz | 25MHz | 25MHz |
| Connectivity | EBI/EMI, I²C, SPI, UART/USART | EBI/EMI, I²C, SPI, UART/USART | EBI/EMI, I²C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, LVD, POR, PWM, WDT | Brown-out Detect/Reset, LVD, POR, PWM, WDT | Brown-out Detect/Reset, LVD, POR, PWM, WDT |
| Number of I/O | 26 | 37 | 26 |
| Program Memory Size | - | - | - |
| Program Memory Type | ROMless | ROMless | ROMless |
| EEPROM Size | - | - | - |
| RAM Size | 1.5K x 8 | 1.5K x 8 | 1.5K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.2V ~ 5.5V | 4.2V ~ 5.5V | 4.2V ~ 5.5V |
| Data Converters | A/D 8x10b | A/D 12x10b | A/D 8x10b |
| Oscillator Type | External | External | External |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

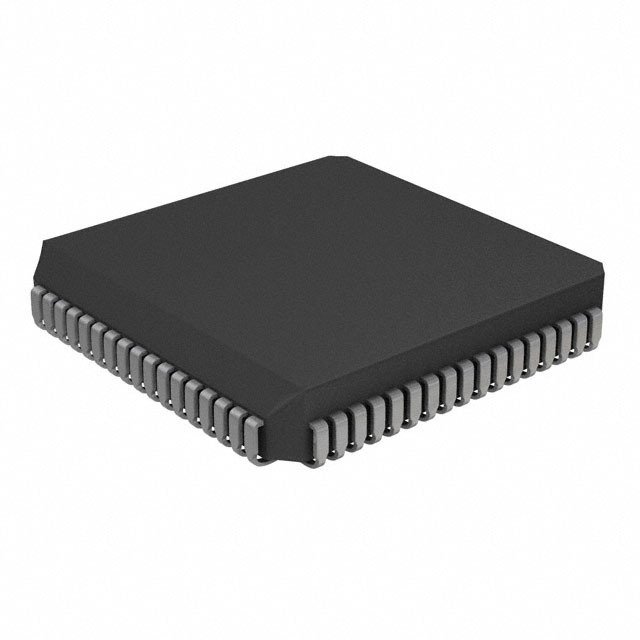

| Package / Case | 68-LCC (J-Lead) | 84-LCC (J-Lead) | 68-LCC (J-Lead) |
| Supplier Device Package | 68-PLCC (24.23x24.23) | 84-PLCC (29.31x29.31) | 68-PLCC (24.23x24.23) |
