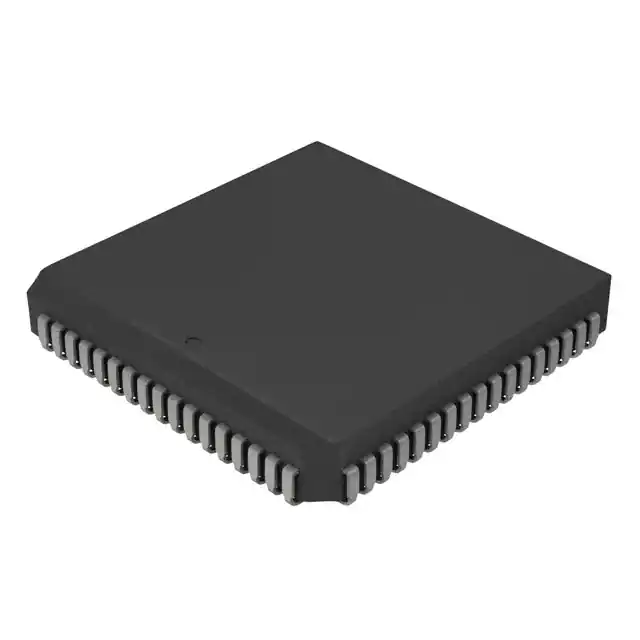

| Part Number | PIC17C766T-16/L | PIC17C766T-16I/L | PIC17C766T-16E/L | PIC17C762T-16/L | PIC17C766-16/L |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Core Processor | PIC | PIC | PIC | PIC | PIC |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 16MHz | 16MHz | 16MHz | 16MHz | 16MHz |
| Connectivity | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 66 | 66 | 66 | 66 | 66 |
| Program Memory Size | 32KB (16K x 16) | 32KB (16K x 16) | 32KB (16K x 16) | 16KB (8K x 16) | 32KB (16K x 16) |
| Program Memory Type | OTP | OTP | OTP | OTP | OTP |
| EEPROM Size | - | - | - | - | - |
| RAM Size | 902 x 8 | 902 x 8 | 902 x 8 | 678 x 8 | 902 x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Data Converters | A/D 16x10b | A/D 16x10b | A/D 16x10b | A/D 16x10b | A/D 16x10b |
| Oscillator Type | External | External | External | External | External |
| Operating Temperature | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 84-LCC (J-Lead) | 84-LCC (J-Lead) | 84-LCC (J-Lead) | 84-LCC (J-Lead) | 84-LCC (J-Lead) |
| Supplier Device Package | 84-PLCC (29.31x29.31) | 84-PLCC (29.31x29.31) | 84-PLCC (29.31x29.31) | 84-PLCC (29.31x29.31) | 84-PLCC (29.31x29.31) |
