| Part Number | PIC16LF18324-I/JQ | PIC16LF18424-I/JQ | PIC16LF18325-I/JQ | PIC16LF18326-I/JQ | PIC16LF18324T-I/JQ | PIC16LF18323-I/JQ | PIC16LF18324-E/JQ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Core Processor | PIC | PIC | PIC | PIC | PIC | PIC | PIC |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz |
| Connectivity | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 12 | 11 | 12 | 12 | 12 | 12 | 12 |
| Program Memory Size | 7KB (4K x 14) | 7KB (4K x 14) | 14KB (8K x 14) | 28KB (16K x 14) | 7KB (4K x 14) | 3.5KB (2K x 14) | 7KB (4K x 14) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 256 x 8 | 256 x 8 | 256 x 8 | 256 x 8 | 256 x 8 | 256 x 8 | 256 x 8 |
| RAM Size | 512 x 8 | 512 x 8 | 1K x 8 | 2K x 8 | 512 x 8 | 256 x 8 | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V |
| Data Converters | A/D 11x10b; D/A 1x5b | A/D 11x12b; D/A 1x5b | A/D 11x10b; D/A 1x5b | A/D 11x10b; D/A 1x5b | A/D 11x10b; D/A 1x5b | A/D 11x10b; D/A 1x5b | A/D 11x10b; D/A 1x5b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

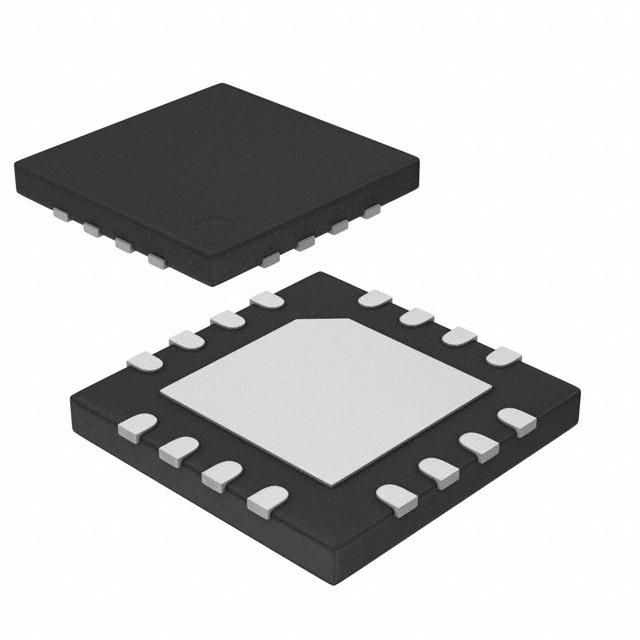

| Package / Case | 16-UQFN Exposed Pad | 16-UQFN Exposed Pad | 16-UQFN Exposed Pad | 16-UQFN Exposed Pad | 16-UQFN Exposed Pad | 16-UQFN Exposed Pad | 16-UQFN Exposed Pad |
| Supplier Device Package | 16-UQFN (4x4) | 16-UQFN (4x4) | 16-UQFN (4x4) | 16-UQFN (4x4) | 16-UQFN (4x4) | 16-UQFN (4x4) | 16-UQFN (4x4) |
