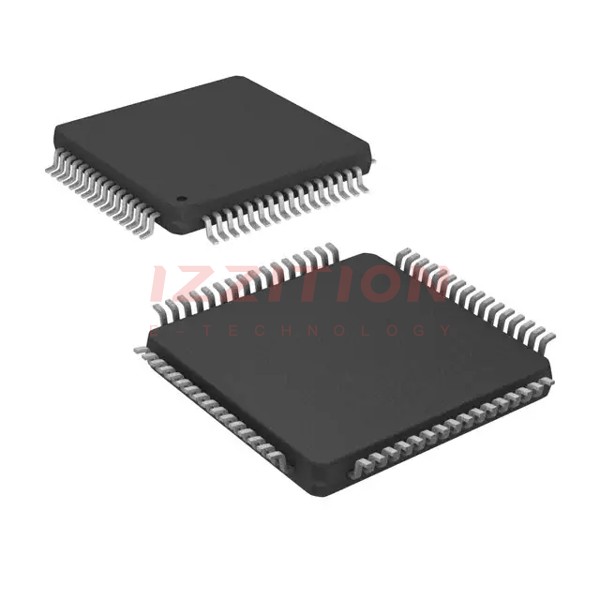

| Part Number | PIC16F946-E/PT | PIC16F946-I/PT |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| Core Processor | PIC | PIC |
| Core Size | 8-Bit | 8-Bit |
| Speed | 20MHz | 20MHz |
| Connectivity | I²C, SPI, UART/USART | I²C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, LCD, POR, PWM, WDT | Brown-out Detect/Reset, LCD, POR, PWM, WDT |
| Number of I/O | 53 | 53 |
| Program Memory Size | 14KB (8K x 14) | 14KB (8K x 14) |
| Program Memory Type | Flash | Flash |
| EEPROM Size | 256 x 8 | 256 x 8 |
| RAM Size | 336 x 8 | 336 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 5.5V | 2V ~ 5.5V |
| Data Converters | A/D 8x10b | A/D 8x10b |
| Oscillator Type | Internal | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 64-TQFP | 64-TQFP |
| Supplier Device Package | 64-TQFP (10x10) | 64-TQFP (10x10) |
