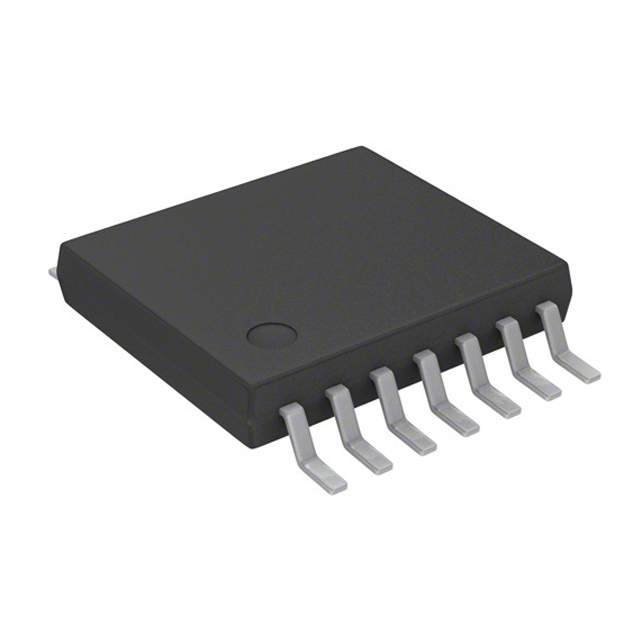

| Part Number | PIC16F684T-E/ST | PIC16F684T-I/ST | PIC16F688T-E/ST | PIC16F684-E/ST | PIC16F684T-E/SL |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active |
| Core Processor | PIC | PIC | PIC | PIC | PIC |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz |
| Connectivity | - | - | UART/USART | - | - |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 12 | 12 | 12 | 12 | 12 |
| Program Memory Size | 3.5KB (2K x 14) | 3.5KB (2K x 14) | 7KB (4K x 14) | 3.5KB (2K x 14) | 3.5KB (2K x 14) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 256 x 8 | 256 x 8 | 256 x 8 | 256 x 8 | 256 x 8 |
| RAM Size | 128 x 8 | 128 x 8 | 256 x 8 | 128 x 8 | 128 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V |
| Data Converters | A/D 8x10b | A/D 8x10b | A/D 8x10b | A/D 8x10b | A/D 8x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-TSSOP | 14-TSSOP | 14-TSSOP | 14-TSSOP | 14-SOIC |
