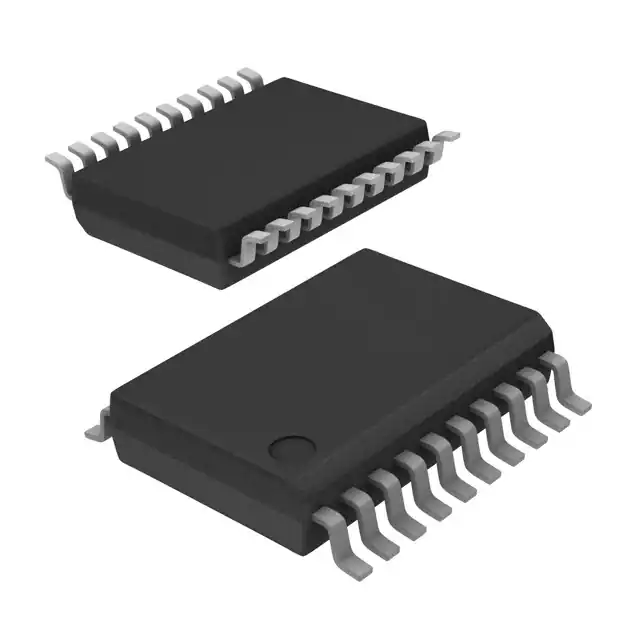

| Part Number | PIC16F1509-E/SS | PIC16F1509-I/SS | PIC16F1507-E/SS | PIC16F1508-E/SS | PIC16F1509-E/SO |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active |
| Core Processor | PIC | PIC | PIC | PIC | PIC |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz |
| Connectivity | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | - | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 17 | 17 | 17 | 17 | 17 |
| Program Memory Size | 14KB (8K x 14) | 14KB (8K x 14) | 3.5KB (2K x 14) | 7KB (4K x 14) | 14KB (8K x 14) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - |
| RAM Size | 512 x 8 | 512 x 8 | 128 x 8 | 256 x 8 | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.3V ~ 5.5V | 2.3V ~ 5.5V | 2.3V ~ 5.5V | 2.3V ~ 5.5V | 2.3V ~ 5.5V |
| Data Converters | A/D 12x10b; D/A 1x5b | A/D 12x10b; D/A 1x5b | A/D 12x10b | A/D 12x10b; D/A 1x5b | A/D 12x10b; D/A 1x5b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) | 20-SSOP (0.209", 5.30mm Width) | 20-SSOP (0.209", 5.30mm Width) | 20-SSOP (0.209", 5.30mm Width) | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SSOP | 20-SSOP | 20-SSOP | 20-SSOP | 20-SOIC |
