| Part Number | PIC16F1503-E/MV | PIC16F1503-I/MV | PIC16F1513-E/MV | PIC16F1503-E/MG |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| Core Processor | PIC | PIC | PIC | PIC |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 20MHz | 20MHz | 20MHz | 20MHz |
| Connectivity | I²C, SPI | I²C, SPI | I²C, LINbus, SPI, UART/USART | I²C, SPI |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 11 | 11 | 25 | 11 |
| Program Memory Size | 3.5KB (2K x 14) | 3.5KB (2K x 14) | 7KB (4K x 14) | 3.5KB (2K x 14) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - |
| RAM Size | 128 x 8 | 128 x 8 | 256 x 8 | 128 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.3V ~ 5.5V | 2.3V ~ 5.5V | 2.3V ~ 5.5V | 2.3V ~ 5.5V |
| Data Converters | A/D 8x10b | A/D 8x10b | A/D 17x10b | A/D 8x10b |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

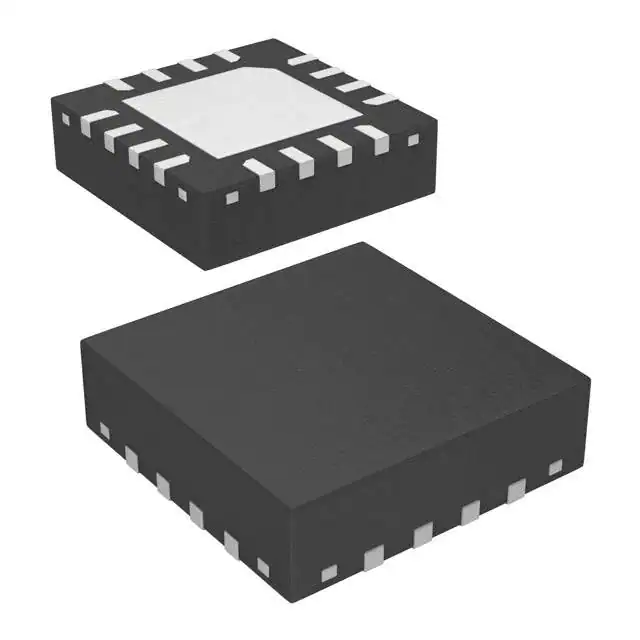

| Package / Case | 16-UFQFN Exposed Pad | 16-UFQFN Exposed Pad | 28-UFQFN Exposed Pad | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-UQFN (3x3) | 16-UQFN (3x3) | 28-UQFN (4x4) | 16-QFN (3x3) |
