| Part Number | PIC16C924T-04/L | PIC16C924T-04I/L | PIC16C924T-08/L | PIC16C923T-04/L | PIC16C924-04/L |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Core Processor | PIC | PIC | PIC | PIC | PIC |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 4MHz | 4MHz | 8MHz | 4MHz | 4MHz |
| Connectivity | I²C, SPI | I²C, SPI | I²C, SPI | I²C, SPI | I²C, SPI |
| Peripherals | LCD, POR, PWM, WDT | LCD, POR, PWM, WDT | LCD, POR, PWM, WDT | LCD, POR, PWM, WDT | LCD, POR, PWM, WDT |
| Number of I/O | 25 | 25 | 25 | 25 | 25 |
| Program Memory Size | 7KB (4K x 14) | 7KB (4K x 14) | 7KB (4K x 14) | 7KB (4K x 14) | 7KB (4K x 14) |
| Program Memory Type | OTP | OTP | OTP | OTP | OTP |
| EEPROM Size | - | - | - | - | - |
| RAM Size | 176 x 8 | 176 x 8 | 176 x 8 | 176 x 8 | 176 x 8 |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 6V | 4V ~ 6V | 4V ~ 6V | 4V ~ 6V | 4V ~ 6V |
| Data Converters | A/D 5x8b | A/D 5x8b | A/D 5x8b | - | A/D 5x8b |
| Oscillator Type | External | External | External | External | External |
| Operating Temperature | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

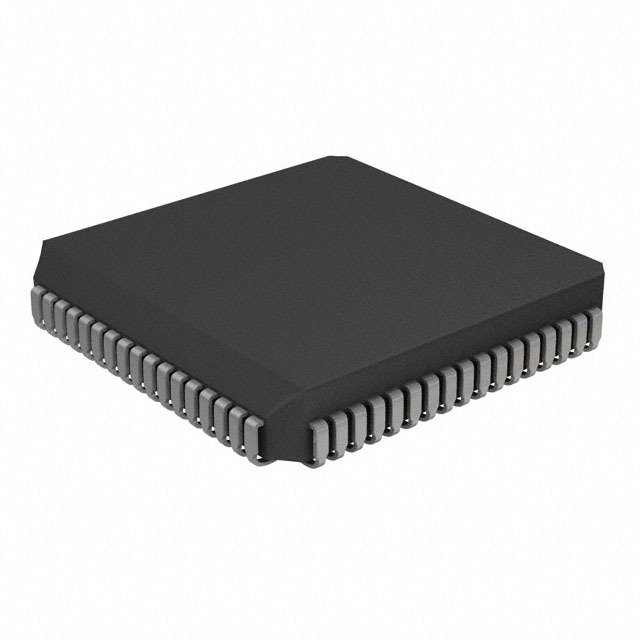

| Package / Case | 68-LCC (J-Lead) | 68-LCC (J-Lead) | 68-LCC (J-Lead) | 68-LCC (J-Lead) | 68-LCC (J-Lead) |
| Supplier Device Package | 68-PLCC (24.23x24.23) | 68-PLCC (24.23x24.23) | 68-PLCC (24.23x24.23) | 68-PLCC (24.23x24.23) | 68-PLCC (24.23x24.23) |
