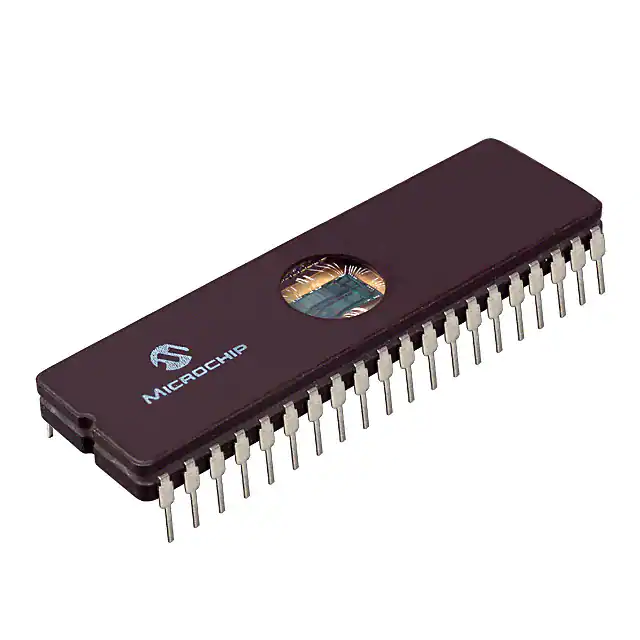

| Part Number | PIC16C74A/JW | PIC16C74B/JW | PIC16C73A/JW | PIC16C745/JW |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Core Processor | PIC | PIC | PIC | PIC |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 20MHz | 20MHz | 20MHz | 24MHz |
| Connectivity | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART | SCI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 33 | 33 | 22 | 22 |
| Program Memory Size | 7KB (4K x 14) | 7KB (4K x 14) | 7KB (4K x 14) | 14KB (8K x 14) |
| Program Memory Type | EPROM, UV | EPROM, UV | EPROM, UV | EPROM, UV |
| EEPROM Size | - | - | - | - |
| RAM Size | 192 x 8 | 192 x 8 | 192 x 8 | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 6V | 4V ~ 5.5V | 4V ~ 6V | 4.35V ~ 5.25V |
| Data Converters | A/D 8x8b | A/D 8x8b | A/D 5x8b | A/D 5x8b |
| Oscillator Type | External | External | External | External |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 40-CDIP (0.600", 15.24mm) Window | 40-CDIP (0.600", 15.24mm) Window | 28-CDIP (0.300", 7.62mm) Window | 28-CDIP (0.300", 7.62mm) Window |
| Supplier Device Package | 40-CERDIP | 40-CERDIP | 28-CERDIP | 28-CERDIP |
