| Part Number | PIC12C508/JW | PIC12C509/JW | PIC12C508A/JW |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Obsolete | Obsolete |
| Core Processor | PIC | PIC | PIC |
| Core Size | 8-Bit | 8-Bit | 8-Bit |
| Speed | 4MHz | 4MHz | 4MHz |
| Connectivity | - | - | - |
| Peripherals | POR, WDT | POR, WDT | POR, WDT |
| Number of I/O | 5 | 5 | 5 |
| Program Memory Size | 768B (512 x 12) | 1.5KB (1K x 12) | 768B (512 x 12) |
| Program Memory Type | EPROM, UV | EPROM, UV | EPROM, UV |
| EEPROM Size | - | - | - |
| RAM Size | 25 x 8 | 41 x 8 | 25 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 3V ~ 5.5V |
| Data Converters | - | - | - |
| Oscillator Type | Internal | Internal | Internal |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole |

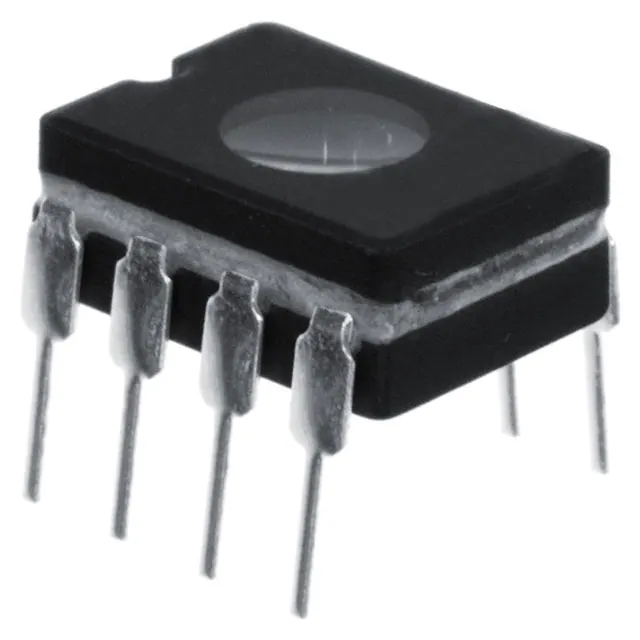

| Package / Case | 8-CDIP (0.300", 7.62mm) Window | 8-CDIP (0.300", 7.62mm) Window | 8-CDIP (0.300", 7.62mm) Window |
| Supplier Device Package | 8-CDIP | 8-CDIP | 8-CDIP |
