Please send RFQ , we will respond immediately.

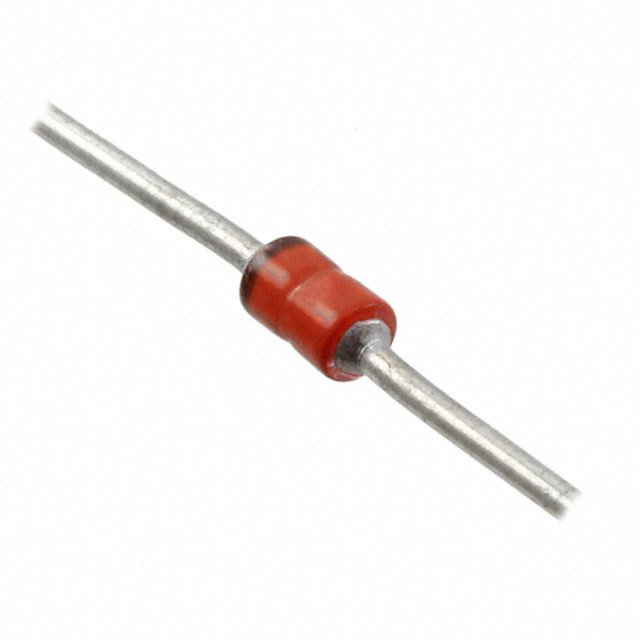

| Part Number | MXLP4KE8.2CA | MXLP4KE82CA | MXLP4KE8.2A |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | - | - | 1 |
| Bidirectional Channels | 1 | 1 | - |
| Voltage - Reverse Standoff (Typ) | 7.02V | 70.1V | 7.02V |
| Voltage - Breakdown (Min) | 7.79V | 77.9V | 7.79V |
| Voltage - Clamping (Max) @ Ipp | 12.1V | 113V | 12.1V |
| Current - Peak Pulse (10/1000µs) | 33A | 3.5A | 33A |
| Power - Peak Pulse | 400W | 400W | 400W |
| Power Line Protection | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-204AL (DO-41) | DO-204AL (DO-41) | DO-204AL (DO-41) |
