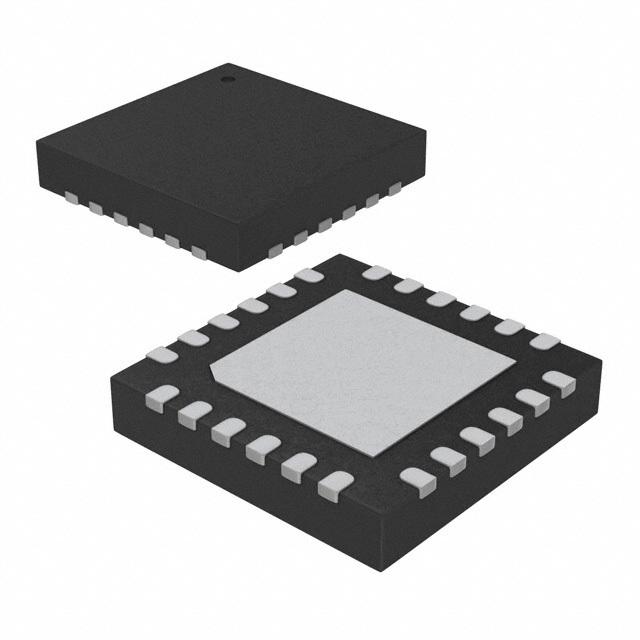

| Part Number | MSL3086-IU | MSL3088-IU | MSL3086-IUR | MSL3080-IU |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | DC DC Controller | DC DC Controller | DC DC Controller | DC DC Controller |
| Topology | Flyback, SEPIC, Step-Up (Boost) | Flyback, SEPIC, Step-Up (Boost) | Flyback, SEPIC, Step-Up (Boost) | Step-Up (Boost) |
| Internal Switch(s) | No | No | No | No |
| Number of Outputs | 8 | 8 | 8 | 8 |
| Voltage - Supply (Min) | 4.5V | 4.5V | 4.5V | 4.5V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output | 40V | 40V | 40V | 40V |
| Current - Output / Channel | 60mA | 60mA | 60mA | 75mA |
| Frequency | 665kHz | 665kHz | 665kHz | 665kHz |
| Dimming | PWM | PWM | PWM | PWM |
| Applications | - | - | - | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-VQFN (4x4) | 24-VQFN (4x4) | 24-VQFN (4x4) | 24-VQFN (4x4) |
