Please send RFQ , we will respond immediately.

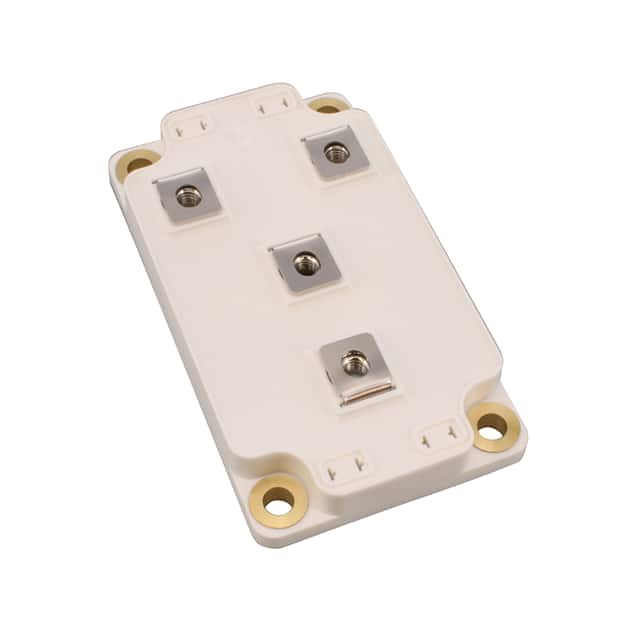

| Part Number | MSCDC200H170AG | MSCDC200H70AG | MSCDC100H170AG | MSCDC200H120AG |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| Diode Type | Single Phase | Single Phase | Single Phase | Single Phase |
| Technology | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky |
| Voltage - Peak Reverse (Max) | 1.7 kV | 700 V | 1.7 kV | 1.2 kV |
| Current - Average Rectified (Io) | - | - | - | - |
| Voltage - Forward (Vf) (Max) @ If | - | - | - | - |
| Current - Reverse Leakage @ Vr | 800 µA @ 1700 V | 800 µA @ 700 V | 400 µA @ 1700 V | 800 µA @ 1200 V |
| Operating Temperature | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module | Module |
| Supplier Device Package | SP6C | SP6C | SP6C | SP6C |
