Please send RFQ , we will respond immediately.

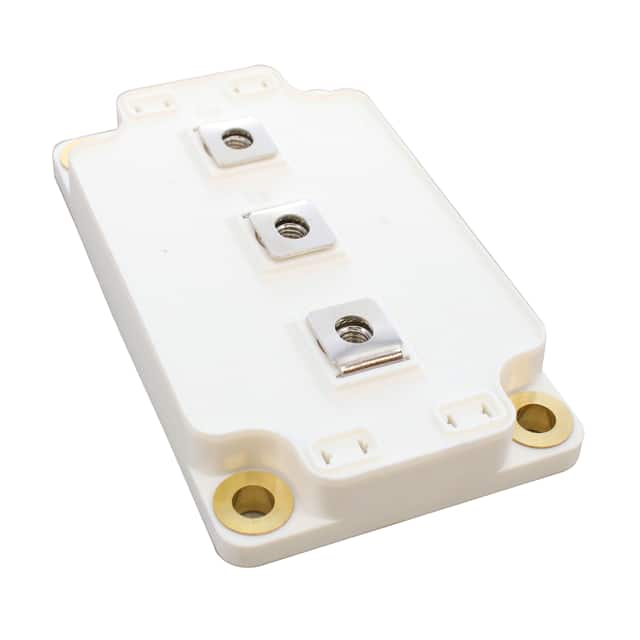

| Part Number | MSCDC200A120D1PAG | MSCDC200A170D1PAG | MSCDC100A120D1PAG |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| Diode Configuration | 1 Pair Series Connection | 1 Pair Series Connection | 1 Pair Series Connection |
| Diode Type | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky |
| Voltage - DC Reverse (Vr) (Max) | 1200 V | 1700 V | 1200 V |
| Current - Average Rectified (Io) (per Diode) | 200A (DC) | 200A (DC) | 100A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 200 A | 1.8 V @ 200 A | 1.8 V @ 100 A |
| Speed | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns | 0 ns | 0 ns |
| Current - Reverse Leakage @ Vr | - | - | - |
| Operating Temperature - Junction | -40°C ~ 175°C | -40°C ~ 175°C | -40°C ~ 175°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | D1P | D1P | D1P |
