| Part Number | MSC050SDA120BCT | MSC030SDA120BCT |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| Diode Type | Silicon Carbide Schottky | Silicon Carbide Schottky |
| Voltage - DC Reverse (Vr) (Max) | 1200 V | 1200 V |
| Current - Average Rectified (Io) | 109A (DC) | 65A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 50 A | 1.8 V @ 30 A |
| Speed | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns | 0 ns |
| Current - Reverse Leakage @ Vr | 200 µA @ 1200 V | 200 µA @ 1200 V |
| Capacitance @ Vr, F | 246pF @ 400V, 1MHz | 141pF @ 400V, 1MHz |
| Mounting Type | Through Hole | Through Hole |

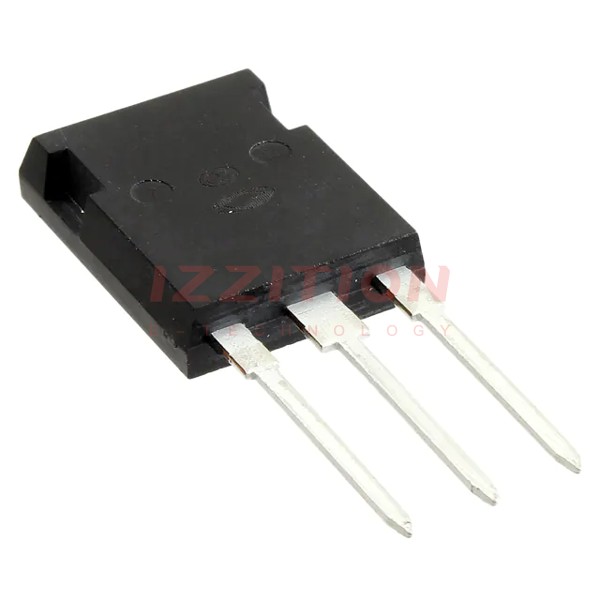

| Package / Case | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247-3 | TO-247-3 |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C |
