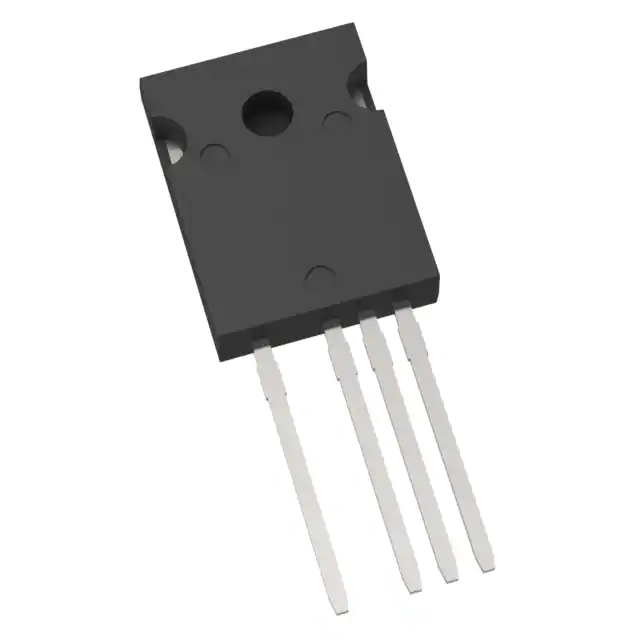

| Part Number | MSC015SMA070B4 | MSC035SMA070B4 | MSC015SMA070B |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | SiCFET (Silicon Carbide) | SiCFET (Silicon Carbide) | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 700 V | 700 V | 700 V |
| Current - Continuous Drain (Id) @ 25°C | 140A (Tc) | 77A (Tc) | 131A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 20V | 20V | 20V |
| Rds On (Max) @ Id, Vgs | 19mOhm @ 40A, 20V | 44mOhm @ 30A, 20V | 19mOhm @ 40A, 20V |
| Vgs(th) (Max) @ Id | 2.4V @ 4mA | 2.7V @ 2mA (Typ) | 2.4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 215 nC @ 20 V | 99 nC @ 20 V | 215 nC @ 20 V |
| Vgs (Max) | +23V, -10V | +23V, -10V | +25V, -10V |
| Input Capacitance (Ciss) (Max) @ Vds | 4500 pF @ 700 V | 2010 pF @ 700 V | 4500 pF @ 700 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 455W (Tc) | 283W (Tc) | 400W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-247-4 | TO-247-4 | TO-247-3 |
| Package / Case | TO-247-4 | TO-247-4 | TO-247-3 |
