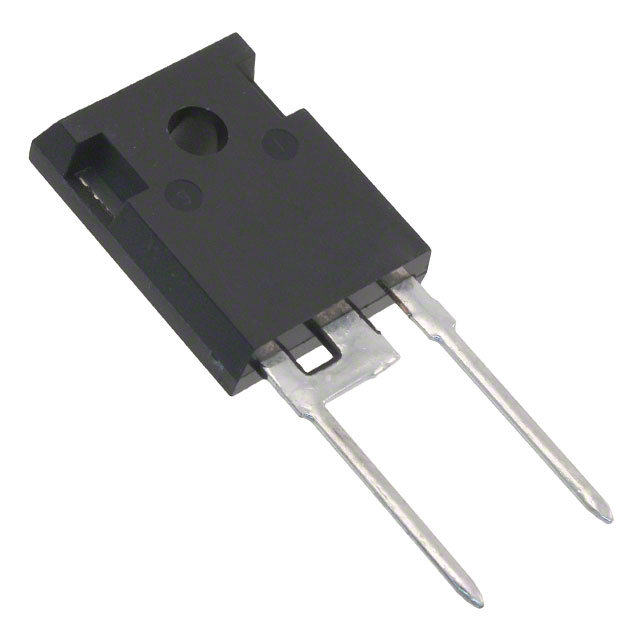

| Part Number | MSC010SDA120B | MSC030SDA120B | MSC015SDA120B | MSC010SDA120K | MSC050SDA120B | MSC020SDA120B |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active |
| Diode Type | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky |
| Voltage - DC Reverse (Vr) (Max) | 1200 V | 1200 V | 1200 V | 1200 V | 1200 V | 1200 V |
| Current - Average Rectified (Io) | 10A (DC) | 30A (DC) | 15A (DC) | 10A (DC) | 109A (DC) | 49A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 10 A | 1.5 V @ 30 A | 1.5 V @ 15 A | 1.5 V @ 10 A | 1.8 V @ 50 A | 1.8 V @ 20 A |
| Speed | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns | 0 ns | 0 ns | 0 ns | 0 ns | 0 ns |
| Current - Reverse Leakage @ Vr | - | - | - | - | 200 µA @ 1200 V | 200 µA @ 1200 V |
| Capacitance @ Vr, F | - | - | - | - | 246pF @ 400V, 1MHz | 1130pF @ 1V, 1MHz |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-2 | TO-247-2 | TO-247-2 | TO-220-2 | TO-247-3 | TO-247-2 |
| Supplier Device Package | TO-247 | TO-247 | TO-247 | TO-220 [K] | TO-247-3 | TO-247 |
| Operating Temperature - Junction | - | - | - | - | -55°C ~ 175°C | -55°C ~ 175°C |
