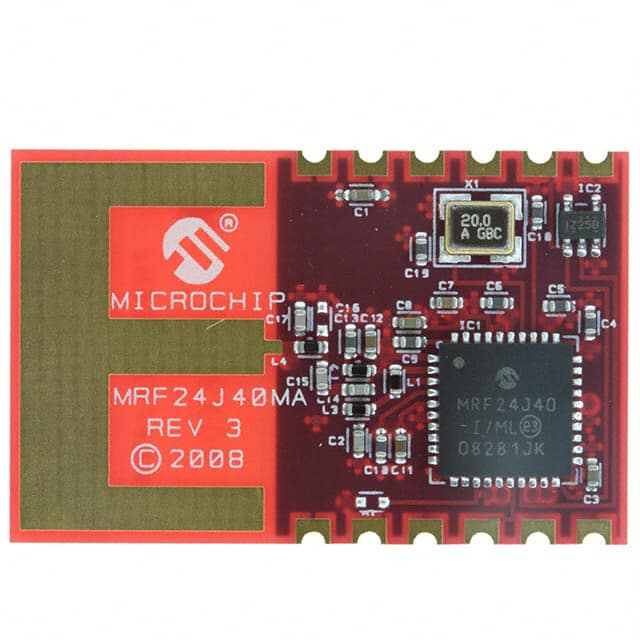

| Part Number | MRF24J40MAT-I/RM | MRF24J40MCT-I/RM | MRF24J40MDT-I/RM | MRF24J40MA-I/RM |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Obsolete | Active | Active |
| RF Family/Standard | 802.15.4 | 802.15.4 | 802.15.4 | 802.15.4 |
| Protocol | Zigbee® | Zigbee® | Zigbee® | Zigbee® |
| Modulation | - | - | - | - |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate | 250kbps | 250kbps | 250kbps | 250kbps |
| Power - Output | 0dBm | 19dBm | 19dBm | 0dBm |
| Sensitivity | -94dBm | -108dBm | -104dBm | -94dBm |
| Serial Interfaces | SPI | SPI | SPI | SPI |
| Antenna Type | Integrated, Trace | Antenna Not Included, U.FL | Integrated, Trace | Integrated, Trace |
| Utilized IC / Part | - | - | - | - |
| Memory Size | - | - | - | - |
| Voltage - Supply | 2.4V ~ 3.6V | 2.7V ~ 3.6V | 3V ~ 3.6V | 2.4V ~ 3.6V |
| Current - Receiving | 19mA | 25mA | 32mA | 19mA |
| Current - Transmitting | 23mA | 120mA | 140mA | 23mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | Module | Module | 12-SMD Module | Module |
